Earthquake with magnitude of ML 3.0 on date 22-07-2021 and time 16:16:18 (Italy) in region 4 km SW Capracotta (IS)
A magnitude ML 3.0 earthquake occured in region: 4 km SW Capracotta (IS), on
- 22-07-2021 14:16:18 (UTC)
- 22-07-2021 16:16:18 (UTC +02:00) Italian time
and geographic coordinates (lat, lon) 41.8180, 14.2280 at 17 km depth.
The earthquake was located by: Bollettino Sismico Italiano INGV.
Search earthquakes: Any within 30 km radius
The values of hypocentral coordinates and magnitude may be revised at a later time as more information becomes available.
Display location by
GeoHack
GoogleMap
OpenStreetMap
Municipalities within 20 km from the epicenter
Distances are determinated based on the geographic coordintes of the (Istat).
| Municipality | Region | Distance (km) | Inhabitants | Cumulative Inhabitants |
|---|---|---|---|---|
| Capracotta | IS | 4 | 903 | 903 |
| Castel del Giudice | IS | 4 | 346 | 1249 |
| San Pietro Avellana | IS | 5 | 503 | 1752 |
| Ateleta | AQ | 5 | 1181 | 2933 |
| Vastogirardi | IS | 6 | 704 | 3637 |
| Sant'Angelo del Pesco | IS | 8 | 364 | 4001 |
| Pescopennataro | IS | 9 | 285 | 4286 |
| Gamberale | CH | 10 | 320 | 4606 |
| Castel di Sangro | AQ | 11 | 6538 | 11144 |
| Agnone | IS | 12 | 5139 | 16283 |
| Pizzoferrato | CH | 12 | 1130 | 17413 |
| Roccaraso | AQ | 13 | 1627 | 19040 |
| Carovilli | IS | 13 | 1359 | 20399 |
| Borrello | CH | 13 | 354 | 20753 |
| Quadri | CH | 13 | 815 | 21568 |
| Roccasicura | IS | 13 | 550 | 22118 |
| Rionero Sannitico | IS | 14 | 1118 | 23236 |
| Rosello | CH | 14 | 237 | 23473 |
| Forlì del Sannio | IS | 14 | 675 | 24148 |
| Rivisondoli | AQ | 15 | 700 | 24848 |
| Castelverrino | IS | 15 | 115 | 24963 |
| Pietrabbondante | IS | 15 | 759 | 25722 |
| Civitaluparella | CH | 16 | 351 | 26073 |
| Pescocostanzo | AQ | 16 | 1128 | 27201 |
| Fallo | CH | 16 | 139 | 27340 |
| Poggio Sannita | IS | 16 | 702 | 28042 |
| Roio del Sangro | CH | 16 | 103 | 28145 |
| Belmonte del Sannio | IS | 16 | 768 | 28913 |
| Acquaviva d'Isernia | IS | 17 | 425 | 29338 |
| Scontrone | AQ | 18 | 574 | 29912 |
| Montenero Val Cocchiara | IS | 18 | 538 | 30450 |
| Montenerodomo | CH | 18 | 690 | 31140 |
| Pescolanciano | IS | 18 | 855 | 31995 |
| Villa Santa Maria | CH | 18 | 1346 | 33341 |
| Alfedena | AQ | 19 | 864 | 34205 |
| Montelapiano | CH | 19 | 82 | 34287 |
| Miranda | IS | 19 | 1047 | 35334 |
| Castiglione Messer Marino | CH | 19 | 1790 | 37124 |
| Palena | CH | 20 | 1392 | 38516 |
Municipalities with at least 50000 inhabitants
An earthquake occurred to
60 Km S of Chieti (51815 inhabitants)
72 Km S of Pescara (121014 inhabitants)
78 Km S of Montesilvano (53738 inhabitants)
83 Km N of Caserta (76326 inhabitants)
89 Km NW of Benevento (60091 inhabitants)
91 Km SE of L'Aquila (69753 inhabitants)
94 Km N of Aversa (53047 inhabitants)
97 Km W of San Severo (53905 inhabitants)
98 Km N of Acerra (59573 inhabitants)
99 Km N of Giugliano in Campania (122974 inhabitants)
100 Km N of Afragola (65057 inhabitants)
Recent and historical seismicity
These maps show the seismic activity in different time intervals, before the seismic event to which they refer. Data reported in the first two maps come from the analysis carried out in real time by the personnel of the INGV Operating Rooms, immediately after each earthquake. The third map shows data from 1985 to the date of the earthquake: the locations are reviewed by the seismological analysts of the INGV Italian Seismic Bulletin (Bollettino Sismico Italiano dell’INGV). The localization parameters (hypocentral coordinates and magnitude) are the best possible estimate with the data available to the INGV, but are constantly updated according to further data that become available. The location and magnitude parameters, subsequently reviewed by seismological analysts, may vary.
Earthquakes of the 3 days preceding this event
This map shows the earthquake epicenters with magnitude ≥ 0.0, localized with data recorded by the National Seismic Network and other collaborative networks both in Italy and in neighboring countries, in the 72 hours preceding this event. The size of the circle indicates the different classes of magnitude. The colors indicate the different time intervals preceding the seismic event. The black and white star is the epicenter of the current earthquake.
Earthquakes of the 90 days preceding this event
This map shows the earthquake epicenters with magnitude ≥ 2.0, localized with data recorded by the National Seismic Network and other collaborative networks both in Italy and in neighboring countries, in the 90 days preceding this event. The size of the circle indicates the different classes of magnitude. The colors indicate the different time intervals preceding the seismic event. The black and white star is the epicenter of the current earthquake.
Earthquakes from 1985 to the date of the event
This map shows the earthquake epicenters with magnitude ≥ 3.0, localized with data recorded by the National Seismic Network and other collaborative networks both in Italy and in neighboring countries, from 1985 to the date of this event. The size of the circle indicates the different classes of magnitude. The colors indicate the different time intervals preceding the seismic event. The black and white star is the epicenter of the current earthquake.
Earthquakes since 1000 AD until 2019
This map shows the epicenters of the historical earthquakes catalogue CPT15 (Catalogo Parametrico dei Terremoti Italiani, 2015 version 3.0, https://doi.org/10.13127/cpti/cpti15.3) since 1000 AD until 2019. The size of the square indicates the different classes of magnitude. For earthquakes with magnitude ≥ 6.0, it is also shown the year of occurrence and the magnitude value. The black and white star is the epicenter of the current earthquake.
Seismic hazard
Seismic hazard maps provide probabilistic estimates of the earthquake ground shaking exceeding a given threshold in a given geographic region within a given time window. Thus, it is not a deterministic prediction - a target that may be never reached given the complexity of the earthquake physical phenomenon - nor of the maximum expected earthquake since this has extremely low probabilities to occur.
In 2004, it was published the seismic hazard map of Italy (http://zonesismiche.mi.ingv.it) that provides a picture of the most hazardous geographic regions. The seismic hazard map of Italy (GdL MPS, 2004; rif. Ordinanza PCM del 28 aprile 2006, n. 3519, All. 1b) provides the 10% probability of exceedance in 50 years of the horizontal acceleration at rock sites (i.e., Vs30>800 m/s; cat. A, 3.2.1 of the D.M. 14.09.2005).
The colours indicate the various values of the ground acceleration that have 10% to be exceeded within 50 years. In general, the colours associated to low values of acceleration refer to areas that are less hazardous and stronger earthquakes repeat less frequently although they may still occur.
Seismic hazard map
This map shows the seismic hazard map of Italy for the region where the earthquake occurred.
Shakemap
These three maps show the results of the analysis using the software ShakeMap designed to provide the level of ground shaking experienced in a region using the data recorded by seismometers and strong motion instruments and seismological information regarding the attenuation of the wavefield with distance and the site characteristics. The Shakemaps are determined for research purposes to provide fast estimates of the level of ground shaking produced by the earthquake. The maps are calculated automatically and updated as more data become available. See http://shakemap.ingv.it for additional information. The black star indicates the epicenter. The triangles show the accelerometric and velocimetric stations used in the calculation, colored according to the recorded shaking.
Intensity Shakemap
This map shows the distribution of instrumental intensities. The intensity is derived through an empirical law that correlates the recorded values of actual ground shaking, e.g., acceleration and velocity, with the macroseismic intensity for Italian earthquakes, as reported in the Italian Macroseismic Database (DBMI15, https://doi.org/10.13127/cpti/cpti15.3).
Peak ground acceleration Shakemap
This map shows the distribution of peak ground acceleration expressed as percent of the acceleration of gravity (i.e., g = 9.81 m/s²).
Peak velocity Shakemap
This map shows the distribution of peak ground velocities expressed in cm/s.
Felt maps

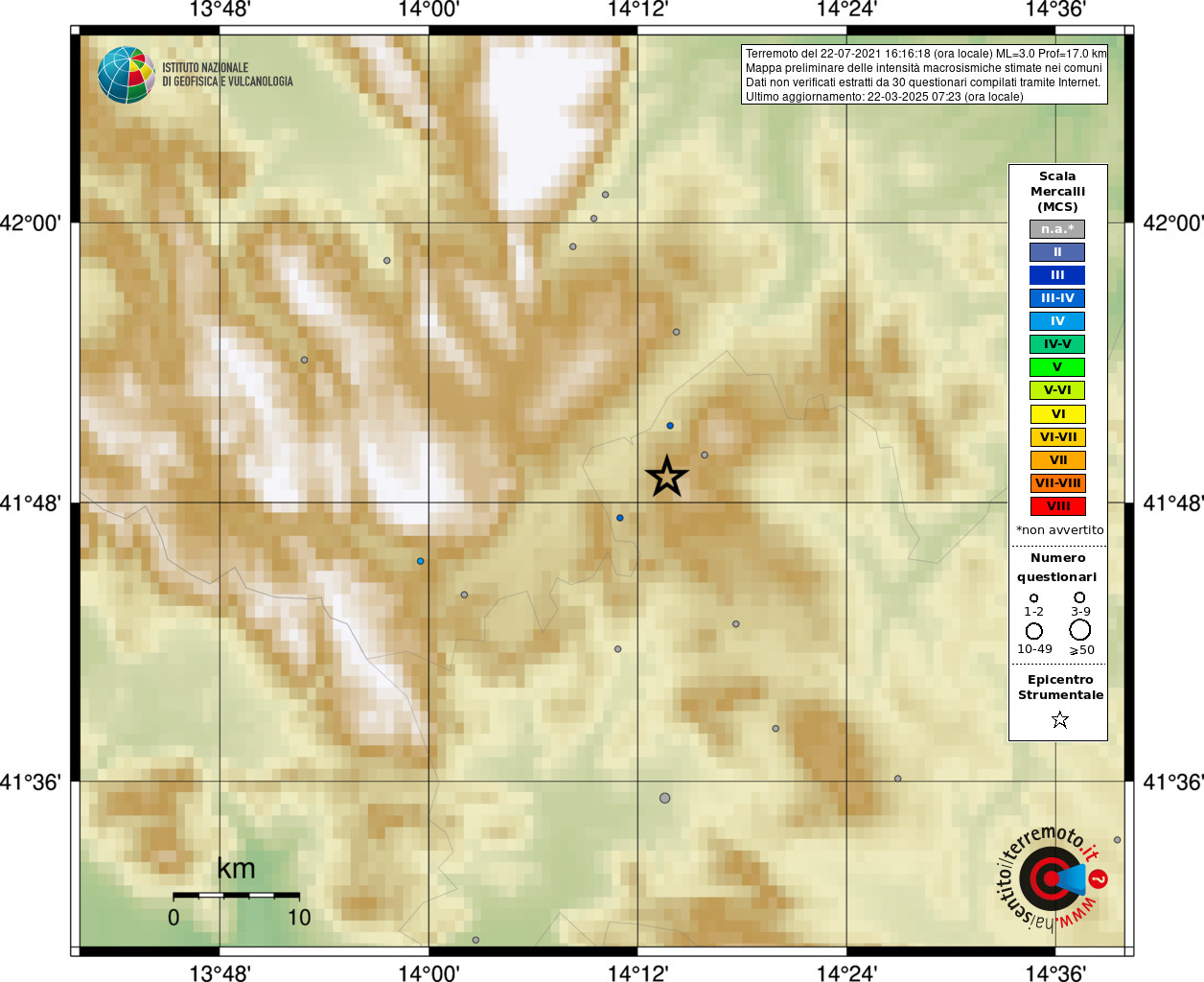

Preliminary map of the earthquake effects from the web questionnaire
This map shows the distribution of earthquake resentment in the area, expressed in terms of intensity on the MCS scale (Mercalli-Cancani-Sieberg). Intensities are determined using data from questionnaires collected on the website http://www.hsit.it. The intensities shown are determined considering all the reports received from each municipality, and are all the more reliable the greater the number of questionnaires. The collected data are subjected to an automatic statistical filter, but are not checked individually. In particular, intensities greater than or equal to the VI degree of the MCS or EMS scale require on-site verification by specialized personnel. The black star is the epicenter of the earthquake that occurred. This map is updated every time citizens fill out new questionnaires. The number of questionnaires processed to obtain this map, the date and time of the last update are shown at the top right.
Locations history
| Type | Magnitude | Date and Time (UTC) | Latitude | Longitude | Depth (km) | Published time (UTC) | Author | Location ID |
|---|---|---|---|---|---|---|---|---|
|
Bulletin Rev1000 |
ML 3.0 | 2021-07-22 14:16:18 |
41.8182 | 14.2282 | 17 | 2021-12-29 11:12:34 |
Bollettino Sismico Italiano INGV | 96213341 |
|
Reviewed Rev100 |
ML 3.0 | 2021-07-22 14:16:18 |
41.8228 | 14.2298 | 21 | 2021-07-22 14:34:20 |
Sala Sismica INGV-Roma | 93065311 |
Preferred location and magnitude until now.
Origin information
Origin
| Field | Value |
|---|---|
| Time (UTC) | 2021-07-22 14:16:18 ± 0.04 |
| Latitude | 41.8182 ± 0.0018 |
| Longitude | 14.2282 ± 0.0024 |
| Depth (km) | 17 ± 1 (from location) |
| Evaluation mode of Origin | manual |
| Evaluation status of Origin | reviewed |
| Version | 1000 -> BULLETIN-INGV |
| Event type | earthquake |
| Origin ID | 96213341 |
Uncertainty
| Field | Value |
|---|---|
| Preferred uncertainty description | uncertainty ellipse |
| Semi-major axis of confidence ellipse (meter) | 249 |
| Semi-minor axis of confidence ellipse (meter) | 80 |
| Azimuth of major axis of confidence ellipse. Measured clockwise from South-North direction at epicenter (gradi) | 215 |
| Circular confidence region, given by single value of horizontal uncertainty (meter) | 250.0 |
| Confidence level of the uncertainty (%) | 68 |
Quality
| Field | Value |
|---|---|
| Largest azimuthal gap in station distribution as seen from epicenter (degree) | 43 |
| Number of associated phases, regardless of their use for origin computation | 109 |
| Number of defining phases | 109 |
| RMS of the travel time residuals of the arrivals used for the origin computation (sec) | 0.15 |
| Epicentral distance of station closest to the epicenter (degree) | 0.12770 |
| Epicentral distance of station farthest from the epicenter (degree) | 1.79055 |
| Number of stations at which the event was observed | 89 |
| Number of stations from which data was used for origin computation | 89 |
Magnitudes information
ML:3.0
| Field | Value |
|---|---|
| Value | 3.0 |
| Uncertainty | 0.3 |
| Num. used stations | 124 |
| Type of magnitude | ML |
| Reference to an origin | 96213341 |
| Agency | INGV |
| Autore | Bollettino Sismico Italiano INGV |
| Time of creation (UTC) | 2021-11-16 15:38:50 |
ML:3.0
| Field | Value |
|---|---|
| Value | 3.0 |
| Uncertainty | 0.3 |
| Num. used stations | 170 |
| Type of magnitude | ML |
| Reference to an origin | 93065311 |
| Agency | INGV |
| Autore | Sala Sismica INGV-Roma |
| Time of creation (UTC) | 2021-07-22 14:34:19 |
Picking and Arrival
| SCNL | Time | Uncertainty | Polarity | Evaluation_mode | Phase | Azimuth | Distance(km) | Takeoff_angle | Residual | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| IV.SLCN.HNZ. | 2021-07-22T14:16:50.49 | 1.0 | undecidable | manual | P | 143 | 197.1582 | 54 | 1.66 | 0 |
| IV.AOI.HHE. | 2021-07-22T14:16:50.32 | 1.0 | undecidable | manual | P | 345 | 198.7455 | 54 | 1.29 | 0 |
| IV.EL6.EHE. | 2021-07-22T14:16:49.58 | 0.6 | undecidable | manual | P | 332 | 191.2641 | 54 | 1.49 | 0 |
| IX.PGN3.HHN. | 2021-07-22T14:16:49.19 | 1.0 | undecidable | manual | P | 136 | 190.365 | 54 | 1.21 | 0 |
| IV.BARO.HNZ. | 2021-07-22T14:16:48.20 | 1.0 | undecidable | manual | P | 286 | 185.5698 | 54 | 0.82 | 0 |
| IV.TOLF.HHN. | 2021-07-22T14:16:47.90 | 0.6 | undecidable | manual | P | 279 | 185.8695 | 54 | 0.48 | 0 |
| IX.SRN3.HNE.02 | 2021-07-22T14:16:47.59 | 1.0 | undecidable | manual | P | 145 | 179.9865 | 54 | 0.91 | 0 |
| IV.PALZ.HHN. | 2021-07-22T14:16:46.77 | 1.0 | undecidable | manual | P | 123 | 173.6928 | 54 | 0.86 | 0 |
| OT.OT13.EHN. | 2021-07-22T14:16:45.65 | 1.0 | undecidable | manual | P | 87 | 161.4162 | 54 | 1.28 | 0 |
| IV.SGO.HHE. | 2021-07-22T14:16:45.45 | 1.0 | undecidable | manual | P | 147 | 166.1115 | 54 | 0.49 | 0 |
| IX.COL3.HHE. | 2021-07-22T14:16:44.80 | 1.0 | undecidable | manual | P | 143 | 155.5221 | 92 | 1.18 | 0 |
| IV.VULT.HHN. | 2021-07-22T14:16:43.98 | 0.6 | undecidable | manual | P | 129 | 150.0387 | 93 | 1.2 | 0 |
| IX.SNR3.EHN. | 2021-07-22T14:16:43.00 | 0.6 | undecidable | manual | P | 146 | 144.5442 | 93 | 1.08 | 0 |
| IX.CMP3.HNE.02 | 2021-07-22T14:16:43.22 | 1.0 | undecidable | manual | P | 151 | 147.6411 | 93 | 0.82 | 0 |
| IV.MC2.EHZ. | 2021-07-22T14:16:42.53 | 1.0 | undecidable | manual | P | 325 | 148.2405 | 93 | 0.04 | 0 |
| IV.SRES.HHN. | 2021-07-22T14:16:42.83 | 1.0 | undecidable | manual | P | 289 | 149.0397 | 93 | 0.21 | 0 |
| OT.OT14.EHN. | 2021-07-22T14:16:41.31 | 0.6 | undecidable | manual | P | 86 | 138.9609 | 93 | 0.24 | 0 |
| IX.LIO3.HHZ. | 2021-07-22T14:16:41.00 | 0.6 | undecidable | manual | P | 142 | 129.3705 | 93 | 1.41 | 0 |
| IV.MSAG.HNE. | 2021-07-22T14:16:41.53 | 0.3 | undecidable | manual | P | 94 | 139.6602 | 93 | 0.36 | 0 |
| IV.MCRV.HHN. | 2021-07-22T14:16:41.85 | 0.6 | undecidable | manual | P | 145 | 139.0608 | 93 | 0.77 | 0 |
| OT.OT12.EHZ. | 2021-07-22T14:16:41.42 | 1.0 | undecidable | manual | P | 98 | 140.5482 | 93 | 0.1 | 0 |
| IV.NRCA.HHZ. | 2021-07-22T14:16:41.31 | 1.0 | undecidable | manual | P | 321 | 145.0437 | 93 | -0.69 | 0 |
| IX.MNT3.EHN.02 | 2021-07-22T14:16:40.52 | 1.0 | undecidable | manual | P | 149 | 126.6732 | 93 | 1.34 | 0 |
| IV.FAGN.HHZ. | 2021-07-22T14:16:40.05 | 0.6 | undecidable | manual | S | 313 | 72.6717 | 96 | -0.1 | 4 |
| IV.PTQR.HHZ. | 2021-07-22T14:16:40.35 | 0.3 | undecidable | manual | S | 289 | 71.9724 | 96 | 0.4 | 7 |
| IV.MELA.HHZ. | 2021-07-22T14:16:40.96 | 0.6 | undecidable | manual | S | 99 | 75.369 | 96 | 0.09 | 1 |
| IX.NSC3.EHE.02 | 2021-07-22T14:16:40.86 | 0.6 | undecidable | manual | P | 145 | 130.9689 | 93 | 1.02 | 0 |
| IX.RSF3.HNE. | 2021-07-22T14:16:40.03 | 1.0 | undecidable | manual | P | 140 | 123.2877 | 93 | 1.38 | 0 |
| IV.LNSS.HNZ. | 2021-07-22T14:16:40.20 | 1.0 | undecidable | manual | P | 312 | 130.7691 | 93 | 0.39 | 0 |
| IV.VENT.EHE. | 2021-07-22T14:16:39.72 | 1.0 | undecidable | manual | P | 211 | 131.9679 | 93 | -0.27 | 0 |
| IV.IFOR.HHN. | 2021-07-22T14:16:39.37 | 1.0 | undecidable | manual | P | 194 | 126.6732 | 93 | 0.2 | 0 |
| IV.ICAI.EHN. | 2021-07-22T14:16:39.09 | 0.6 | undecidable | manual | P | 190 | 122.5884 | 93 | 0.55 | 0 |
| IV.SNAL.HNE. | 2021-07-22T14:16:39.67 | 0.6 | undecidable | manual | P | 140 | 128.3715 | 93 | 0.24 | 0 |
| IV.IMTC.HHE. | 2021-07-22T14:16:39.67 | 1.0 | undecidable | manual | P | 194 | 125.1747 | 93 | 0.72 | 0 |
| IX.SALI.HNE. | 2021-07-22T14:16:39.79 | 1.0 | undecidable | manual | P | 141 | 126.4734 | 93 | 0.65 | 0 |
| IX.SSB3.HNE. | 2021-07-22T14:16:38.98 | 1.0 | undecidable | manual | P | 134 | 116.8941 | 93 | 1.31 | 0 |
| IV.MTRA.EHE. | 2021-07-22T14:16:38.65 | 0.6 | undecidable | manual | P | 327 | 124.4865 | 93 | -0.19 | 0 |
| OT.OT03.EHE. | 2021-07-22T14:16:38.67 | 1.0 | undecidable | manual | P | 95 | 118.1928 | 93 | 0.8 | 0 |
| OT.OT07.EHE. | 2021-07-22T14:16:38.18 | 0.3 | undecidable | manual | P | 100 | 125.3745 | 93 | -0.8 | 0 |
| IV.VTIR.HHZ. | 2021-07-22T14:16:37.73 | 1.0 | undecidable | manual | P | 172 | 113.4975 | 93 | 0.58 | 0 |
| IV.CSOB.HNZ. | 2021-07-22T14:16:37.91 | 0.6 | undecidable | manual | P | 184 | 110.2119 | 94 | 1.26 | 0 |
| IV.VVDG.HHE. | 2021-07-22T14:16:37.88 | 0.6 | undecidable | manual | P | 171 | 110.2119 | 94 | 1.24 | 0 |
| IV.TREM.HHN. | 2021-07-22T14:16:37.44 | 0.6 | undecidable | manual | P | 72 | 111 | 94 | 0.68 | 0 |
| IV.VCRE.HHZ. | 2021-07-22T14:16:37.49 | 1.0 | undecidable | manual | P | 171 | 112.0989 | 93 | 0.55 | 0 |
| IV.LRP.EHZ. | 2021-07-22T14:16:37.16 | 0.6 | undecidable | manual | S | 251 | 56.3991 | 98 | 1.33 | 20 |
| IV.CFMN.HHN. | 2021-07-22T14:16:37.81 | 0.6 | undecidable | manual | P | 186 | 109.9122 | 94 | 1.22 | 0 |
| OT.OT05.EHE. | 2021-07-22T14:16:36.18 | 1.0 | undecidable | manual | P | 98 | 115.0959 | 93 | -1.22 | 0 |
| IV.RM33.HNE. | 2021-07-22T14:16:36.92 | 1.0 | undecidable | manual | P | 313 | 113.1978 | 93 | -0.18 | 0 |
| IV.SMA1.EHN. | 2021-07-22T14:16:36.72 | 1.0 | undecidable | manual | P | 321 | 116.1948 | 93 | -0.84 | 0 |
| IV.T0110.HHZ. | 2021-07-22T14:16:36.58 | 0.3 | undecidable | manual | S | 321 | 58.8966 | 97 | 0.09 | 40 |
| OT.OT06.EHZ. | 2021-07-22T14:16:36.22 | 0.6 | undecidable | manual | P | 97 | 113.997 | 93 | -1.01 | 0 |
| IV.CAMP.HHE. | 2021-07-22T14:16:35.63 | 1.0 | undecidable | manual | P | 320 | 104.2179 | 94 | -0.1 | 0 |
| OT.OT04.EHE. | 2021-07-22T14:16:35.85 | 0.6 | undecidable | manual | P | 95 | 112.3986 | 93 | -1.13 | 0 |
| IV.MRB1.HHZ. | 2021-07-22T14:16:35.57 | 1.0 | undecidable | manual | P | 141 | 98.6235 | 94 | 0.7 | 0 |
| IV.APRC.HHN. | 2021-07-22T14:16:35.64 | 1.0 | undecidable | manual | P | 93 | 109.0131 | 94 | -0.81 | 0 |
| IV.RCAV.EHZ. | 2021-07-22T14:16:35.28 | 0.6 | undecidable | manual | P | 272 | 106.116 | 94 | -0.73 | 0 |
| IV.TERO.HHN. | 2021-07-22T14:16:35.41 | 1.0 | undecidable | manual | P | 330 | 102.9192 | 94 | -0.12 | 0 |
| IV.MOCO.HNE. | 2021-07-22T14:16:34.43 | 1.0 | undecidable | manual | P | 122 | 91.7415 | 94 | 0.62 | 0 |
| IV.VVLD.HHZ. | 2021-07-22T14:16:34.14 | 0.3 | undecidable | manual | S | 277 | 50.3163 | 99 | -0.09 | 63 |
| IT.PLTA.HNN. | 2021-07-22T14:16:33.75 | 0.6 | undecidable | manual | S | 81 | 47.0196 | 100 | 0.4 | 43 |
| IV.GIUL.HHZ. | 2021-07-22T14:16:32.51 | 0.3 | undecidable | manual | P | 251 | 85.6476 | 95 | -0.36 | 0 |
| IV.GIGS.HHN. | 2021-07-22T14:16:32.57 | 1.0 | undecidable | manual | P | 323 | 88.7445 | 95 | -0.77 | 0 |
| IV.PSB1.HNE. | 2021-07-22T14:16:32.22 | 0.3 | undecidable | manual | P | 144 | 81.8514 | 95 | -0.06 | 0 |
| IV.POFI.HHZ. | 2021-07-22T14:16:32.65 | 0.3 | undecidable | manual | S | 256 | 44.1225 | 101 | 0.05 | 72 |
| IV.VITU.HHZ. | 2021-07-22T14:16:32.49 | 1.0 | undecidable | manual | P | 154 | 77.9664 | 95 | 0.8 | 0 |
| IT.SULA.HNN. | 2021-07-22T14:16:31.44 | 0.6 | undecidable | manual | S | 318 | 38.2284 | 103 | 0.38 | 46 |
| IT.SULP.HGZ. | 2021-07-22T14:16:31.38 | 0.3 | undecidable | manual | S | 320 | 38.628 | 103 | 0.22 | 71 |
| IT.SULC.HNZ. | 2021-07-22T14:16:31.28 | 0.6 | undecidable | manual | S | 317 | 38.2284 | 103 | 0.22 | 48 |
| IV.PTQR.HHZ. | 2021-07-22T14:16:30.40 | 0.1 | undecidable | manual | P | 289 | 71.9724 | 96 | -0.37 | 9 |
| IV.INTR.HNZ. | 2021-07-22T14:16:30.16 | 0.3 | undecidable | manual | S | 309 | 34.2435 | 105 | 0.13 | 73 |
| IV.GUAR.HHZ. | 2021-07-22T14:16:30.82 | 0.3 | undecidable | manual | P | 268 | 75.7686 | 95 | -0.53 | 2 |
| IV.GATE.HHZ. | 2021-07-22T14:16:30.52 | 0.1 | undecidable | manual | P | 121 | 65.8896 | 96 | 0.69 | 23 |
| IV.FAGN.HHZ. | 2021-07-22T14:16:30.48 | 0.3 | undecidable | manual | P | 313 | 72.6717 | 96 | -0.4 | 5 |
| IV.MELA.HHZ. | 2021-07-22T14:16:30.61 | 0.1 | undecidable | manual | P | 99 | 75.369 | 96 | -0.69 | 2 |
| IV.PIGN.HHZ. | 2021-07-22T14:16:30.85 | 0.3 | undecidable | manual | P | 183 | 68.6757 | 96 | 0.59 | 12 |
| IV.VCEL.EHZ. | 2021-07-22T14:16:30.49 | 0.3 | undecidable | manual | P | 334 | 71.4729 | 96 | -0.2 | 8 |
| IV.LRP.EHZ. | 2021-07-22T14:16:29.22 | 0.1 | undecidable | manual | P | 251 | 56.3991 | 98 | 0.83 | 50 |
| IV.PTRJ.HNN. | 2021-07-22T14:16:29.15 | 0.6 | undecidable | manual | P | 154 | 56.1993 | 98 | 0.79 | 26 |
| IV.TRIV.HHZ. | 2021-07-22T14:16:29.17 | 0.6 | undecidable | manual | S | 102 | 27.2505 | 111 | 0.92 | 38 |
| IT.OPI.HGZ. | 2021-07-22T14:16:29.75 | 0.3 | undecidable | manual | S | 262 | 33.2445 | 106 | -0.02 | 75 |
| IV.T0110.HHZ. | 2021-07-22T14:16:28.48 | 0.1 | undecidable | manual | P | 321 | 58.8966 | 97 | -0.28 | 51 |
| IT.LRNO.HNZ. | 2021-07-22T14:16:28.29 | 0.6 | undecidable | manual | P | 91 | 57.1983 | 98 | -0.22 | 29 |
| IT.GLNS.HNZ. | 2021-07-22T14:16:28.30 | 0.3 | undecidable | manual | P | 79 | 57.9975 | 98 | -0.32 | 40 |
| IV.SACR.HHZ. | 2021-07-22T14:16:28.87 | 0.6 | undecidable | manual | P | 140 | 61.1943 | 97 | -0.25 | 21 |
| IV.CERA.HHZ. | 2021-07-22T14:16:28.54 | 0.6 | undecidable | manual | S | 215 | 29.9478 | 108 | -0.4 | 46 |
| IV.LPEL.HNZ. | 2021-07-22T14:16:27.97 | 0.3 | undecidable | manual | S | 352 | 25.6521 | 113 | 0.12 | 73 |
| IV.VVLD.HHZ. | 2021-07-22T14:16:27.15 | 0.1 | undecidable | manual | P | 277 | 50.3163 | 99 | -0.31 | 79 |
| IV.MCI.EHZ. | 2021-07-22T14:16:27.43 | 0.3 | undecidable | manual | P | 224 | 50.0166 | 99 | 0.02 | 64 |
| IV.SGG.HHZ. | 2021-07-22T14:16:27.02 | 0.1 | undecidable | manual | P | 165 | 49.5171 | 99 | -0.31 | 81 |
| IV.MIDA.HHZ. | 2021-07-22T14:16:26.53 | 0.6 | undecidable | manual | S | 174 | 19.6692 | 121 | 0.1 | 49 |
| IV.VAGA.HHZ. | 2021-07-22T14:16:26.42 | 0.1 | undecidable | manual | P | 179 | 44.7219 | 101 | -0.18 | 93 |
| IV.POFI.HHZ. | 2021-07-22T14:16:26.38 | 0.1 | undecidable | manual | P | 256 | 44.1225 | 101 | -0.14 | 95 |
| IV.TST02.HHZ. | 2021-07-22T14:16:26.50 | 0.3 | undecidable | manual | S | 35 | 20.6682 | 119 | -0.15 | 73 |
| IV.BSSO.HHZ. | 2021-07-22T14:16:26.55 | 0.1 | undecidable | manual | P | 135 | 42.7239 | 101 | 0.24 | 94 |
| IT.PLTA.HNN. | 2021-07-22T14:16:26.69 | 0.3 | undecidable | manual | P | 81 | 47.0196 | 100 | -0.26 | 66 |
| IV.TST01.HHZ. | 2021-07-22T14:16:25.26 | 0.6 | undecidable | manual | S | 120 | 15.2736 | 130 | -0.2 | 49 |
| IT.SULC.HNZ. | 2021-07-22T14:16:25.53 | 0.3 | undecidable | manual | P | 317 | 38.2284 | 103 | -0.1 | 74 |
| IV.RNI2.HHZ. | 2021-07-22T14:16:25.04 | 0.6 | undecidable | manual | S | 206 | 14.1747 | 132 | -0.22 | 49 |
| IT.SULA.HNN. | 2021-07-22T14:16:25.54 | 0.3 | undecidable | manual | P | 318 | 38.2284 | 103 | -0.09 | 74 |
| IT.SULP.HGZ. | 2021-07-22T14:16:25.48 | 0.3 | undecidable | manual | P | 320 | 38.628 | 103 | -0.21 | 72 |
| IV.CERA.HHZ. | 2021-07-22T14:16:24.26 | 0.1 | undecidable | manual | P | 215 | 29.9478 | 108 | -0.14 | 97 |
| IT.OPI.HGZ. | 2021-07-22T14:16:24.76 | 0.1 | undecidable | manual | P | 262 | 33.2445 | 106 | -0.12 | 98 |
| IV.INTR.HNZ. | 2021-07-22T14:16:24.96 | 0.1 | undecidable | manual | P | 309 | 34.2435 | 105 | -0.07 | 99 |
| IV.TRIV.HHZ. | 2021-07-22T14:16:24.00 | 0.1 | undecidable | manual | P | 102 | 27.2505 | 111 | -0.01 | 100 |
| IV.LPEL.HNZ. | 2021-07-22T14:16:23.49 | 0.1 | undecidable | manual | P | 352 | 25.6521 | 113 | -0.29 | 95 |
| IV.MIDA.HHZ. | 2021-07-22T14:16:22.92 | 0.1 | positive | manual | P | 174 | 19.6692 | 121 | -0.03 | 100 |
| IV.TST01.HHZ. | 2021-07-22T14:16:22.47 | 0.1 | positive | manual | P | 120 | 15.2736 | 130 | 0.07 | 98 |
| IV.RNI2.HHZ. | 2021-07-22T14:16:22.54 | 0.1 | undecidable | manual | P | 206 | 14.1747 | 132 | 0.26 | 94 |
| IV.TST02.HHZ. | 2021-07-22T14:16:22.94 | 0.1 | positive | manual | P | 35 | 20.6682 | 119 | -0.14 | 97 |
Station Magnitude and Amplitude
| SCNL | mag | Generic_amplitude | Period | Type | Category | Unit | Time_window_reference |
|---|---|---|---|---|---|---|---|
| IV.RNI2.HHE. | ML:3.1 | 0.00973 | 0.54 | AML | other | m | 2021-07-22T14:16:26.01 |
| IV.TST01.HHE. | ML:2.4 | 0.0020015625000000003 | 1.9584 | AML | other | m | 2021-07-22T14:16:26.38 |
| IV.RNI2.HHN. | ML:3.6 | 0.026699999999999998 | 0.66 | AML | other | m | 2021-07-22T14:16:26.71 |
| IV.TST01.HHN. | ML:2.8 | 0.004567876 | 0.8832 | AML | other | m | 2021-07-22T14:16:26.31 |
| IV.TST02.HHN. | ML:3.6 | 0.0228 | 0.34 | AML | other | m | 2021-07-22T14:16:26.88 |
| IV.MIDA.HNE. | ML:3.4 | 0.016649999999999998 | 0.68 | AML | other | m | 2021-07-22T14:16:27.67 |
| IV.TST02.HHE. | ML:3.7 | 0.0292 | 0.46 | AML | other | m | 2021-07-22T14:16:27.71 |
| IV.MIDA.HNN. | ML:3.3 | 0.01217 | 0.42 | AML | other | m | 2021-07-22T14:16:27.51 |
| IV.MIDA.HHE. | ML:3.3 | 0.012934999999999999 | 0.92 | AML | other | m | 2021-07-22T14:16:27.52 |
| IV.MIDA.HHN. | ML:3.4 | 0.017 | 0.7 | AML | other | m | 2021-07-22T14:16:27.67 |
| IV.LPEL.HHN. | ML:3.4 | 0.012 | 0.24 | AML | other | m | 2021-07-22T14:16:28.70 |
| IV.LPEL.HNN. | ML:3.3 | 0.01105 | 0.24 | AML | other | m | 2021-07-22T14:16:28.70 |
| IV.LPEL.HHE. | ML:3.5 | 0.0171 | 0.22 | AML | other | m | 2021-07-22T14:16:28.83 |
| IV.LPEL.HNE. | ML:3.5 | 0.0159 | 0.22 | AML | other | m | 2021-07-22T14:16:28.83 |
| IV.INTR.HHN. | ML:3.6 | 0.0157 | 1.38 | AML | other | m | 2021-07-22T14:16:30.90 |
| IV.INTR.HNN. | ML:3.6 | 0.0151 | 0.88 | AML | other | m | 2021-07-22T14:16:30.90 |
| IV.CERA.HNN. | ML:2.9 | 0.0034500000000000004 | 1.66 | AML | other | m | 2021-07-22T14:16:30.14 |
| IV.CERA.HHN. | ML:2.9 | 0.003625 | 1.66 | AML | other | m | 2021-07-22T14:16:30.14 |
| IV.INTR.HNE. | ML:3.3 | 0.00708 | 0.46 | AML | other | m | 2021-07-22T14:16:31.78 |
| IV.INTR.HHE. | ML:3.3 | 0.007185 | 0.46 | AML | other | m | 2021-07-22T14:16:31.78 |
| IV.CERA.HNE. | ML:2.9 | 0.0036149999999999997 | 1.6 | AML | other | m | 2021-07-22T14:16:32.03 |
| IV.TRIV.HHE. | ML:2.8 | 0.0030949999999999997 | 1.22 | AML | other | m | 2021-07-22T14:16:32.28 |
| IV.TRIV.HNE. | ML:2.8 | 0.0029300000000000003 | 1.24 | AML | other | m | 2021-07-22T14:16:32.28 |
| IV.POFI.HHN. | ML:3.0 | 0.0029249999999999996 | 1.66 | AML | other | m | 2021-07-22T14:16:32.10 |
| IV.POFI.HNN. | ML:3.1 | 0.003585 | 1.64 | AML | other | m | 2021-07-22T14:16:32.11 |
| IV.POFI.HHE. | ML:3.0 | 0.003225 | 0.74 | AML | other | m | 2021-07-22T14:16:33.73 |
| IV.POFI.HNE. | ML:3.1 | 0.003835 | 0.72 | AML | other | m | 2021-07-22T14:16:33.73 |
| IV.TRIV.HHN. | ML:2.9 | 0.0034950000000000003 | 0.38 | AML | other | m | 2021-07-22T14:16:33.36 |
| IV.TRIV.HNN. | ML:2.8 | 0.00333 | 0.38 | AML | other | m | 2021-07-22T14:16:33.36 |
| IV.VVLD.HNN. | ML:3.2 | 0.004165 | 0.4 | AML | other | m | 2021-07-22T14:16:34.75 |
| IV.VVLD.HHN. | ML:3.3 | 0.0044800000000000005 | 0.4 | AML | other | m | 2021-07-22T14:16:34.75 |
| IV.PIGN.HNE. | ML:2.6 | 0.000782 | 0.3 | AML | other | m | 2021-07-22T14:16:34.65 |
| IV.PIGN.HHE. | ML:2.7 | 0.0008020000000000001 | 0.32 | AML | other | m | 2021-07-22T14:16:34.81 |
| IV.PIGN.HNN. | ML:2.6 | 0.000741 | 1.64 | AML | other | m | 2021-07-22T14:16:34.98 |
| IV.PIGN.HHN. | ML:2.6 | 0.0007840000000000001 | 1.66 | AML | other | m | 2021-07-22T14:16:34.99 |
| IV.VVLD.HHE. | ML:3.1 | 0.003225 | 1.6 | AML | other | m | 2021-07-22T14:16:35.82 |
| IV.VVLD.HNE. | ML:3.1 | 0.0029500000000000004 | 1.6 | AML | other | m | 2021-07-22T14:16:35.82 |
| IV.MCI.EHE. | ML:3.2 | 0.0036999999999999997 | 0.62 | AML | other | m | 2021-07-22T14:16:36.93 |
| IV.MCI.EHN. | ML:3.1 | 0.0033499999999999997 | 0.24 | AML | other | m | 2021-07-22T14:16:37.46 |
| IV.VAGA.HHN. | ML:3.0 | 0.003245 | 0.44 | AML | other | m | 2021-07-22T14:16:37.64 |
| IV.VAGA.HNN. | ML:3.0 | 0.00309 | 0.44 | AML | other | m | 2021-07-22T14:16:37.64 |
| IV.BSSO.HNE. | ML:2.6 | 0.0012850000000000001 | 0.64 | AML | other | m | 2021-07-22T14:16:37.99 |
| IV.BSSO.HHE. | ML:2.7 | 0.0013599999999999999 | 0.64 | AML | other | m | 2021-07-22T14:16:37.99 |
| IV.BSSO.HNN. | ML:2.7 | 0.0014199999999999998 | 0.7 | AML | other | m | 2021-07-22T14:16:37.82 |
| IV.LRP.EHE. | ML:3.2 | 0.00382 | 0.36 | AML | other | m | 2021-07-22T14:16:37.64 |
| IV.BSSO.HHN. | ML:2.7 | 0.00148 | 0.7 | AML | other | m | 2021-07-22T14:16:37.82 |
| IV.LRP.EHN. | ML:3.0 | 0.002395 | 0.4 | AML | other | m | 2021-07-22T14:16:37.65 |
| IV.CERA.HHE. | ML:2.8 | 0.00309 | 0.82 | AML | other | m | 2021-07-22T14:16:38.00 |
| IV.T0110.HHE. | ML:3.2 | 0.00337 | 0.24 | AML | other | m | 2021-07-22T14:16:39.31 |
| IV.SGG.HNN. | ML:2.9 | 0.0019 | 1.48 | AML | other | m | 2021-07-22T14:16:40.97 |
| IV.SGG.HHN. | ML:2.9 | 0.00209 | 1.48 | AML | other | m | 2021-07-22T14:16:40.23 |
| IV.PTQR.HHN. | ML:2.6 | 0.0006875 | 0.58 | AML | other | m | 2021-07-22T14:16:41.36 |
| IV.PTQR.HHE. | ML:2.5 | 0.000518 | 0.58 | AML | other | m | 2021-07-22T14:16:41.65 |
| IV.VAGA.HNE. | ML:2.8 | 0.0019950000000000002 | 1.62 | AML | other | m | 2021-07-22T14:16:41.86 |
| IV.T0110.HHN. | ML:3.0 | 0.0023200000000000004 | 0.5 | AML | other | m | 2021-07-22T14:16:42.84 |
| IV.FAGN.HHN. | ML:3.3 | 0.0033049999999999998 | 0.48 | AML | other | m | 2021-07-22T14:16:42.71 |
| IV.SGG.HHE. | ML:2.9 | 0.0020599999999999998 | 0.5 | AML | other | m | 2021-07-22T14:16:43.17 |
| IV.SGG.HNE. | ML:2.9 | 0.002155 | 0.5 | AML | other | m | 2021-07-22T14:16:43.17 |
| IV.GUAR.HHE. | ML:2.7 | 0.00073 | 1.1 | AML | other | m | 2021-07-22T14:16:43.61 |
| IV.VAGA.HHE. | ML:2.6 | 0.0010615 | 0.4 | AML | other | m | 2021-07-22T14:16:44.11 |
| IV.MELA.HNN. | ML:3.0 | 0.001595 | 0.74 | AML | other | m | 2021-07-22T14:16:44.45 |
| IV.MELA.HHN. | ML:3.0 | 0.001695 | 0.74 | AML | other | m | 2021-07-22T14:16:44.45 |
| IV.SACR.HHE. | ML:2.5 | 0.0006115000000000001 | 0.88 | AML | other | m | 2021-07-22T14:16:45.06 |
| IV.VCEL.EHN. | ML:3.0 | 0.00163 | 0.3 | AML | other | m | 2021-07-22T14:16:45.24 |
| IV.GIUL.HHN. | ML:2.6 | 0.00047999999999999996 | 0.62 | AML | other | m | 2021-07-22T14:16:45.47 |
| IV.VCEL.EHE. | ML:3.1 | 0.00187 | 0.46 | AML | other | m | 2021-07-22T14:16:45.71 |
| IV.GIUL.HHE. | ML:2.6 | 0.0005200000000000001 | 0.28 | AML | other | m | 2021-07-22T14:16:45.86 |
| IV.FAGN.HHE. | ML:3.4 | 0.00363 | 1.58 | AML | other | m | 2021-07-22T14:16:45.12 |
| IV.GUAR.HHN. | ML:2.8 | 0.0009464999999999999 | 0.4 | AML | other | m | 2021-07-22T14:16:48.26 |
| IV.MELA.HNE. | ML:3.2 | 0.00213 | 0.42 | AML | other | m | 2021-07-22T14:16:48.49 |
| IV.MELA.HHE. | ML:3.2 | 0.00224 | 0.42 | AML | other | m | 2021-07-22T14:16:48.49 |
| IV.GATE.HNN. | ML:2.7 | 0.000968 | 1.52 | AML | other | m | 2021-07-22T14:16:48.04 |
| IV.GATE.HHN. | ML:2.7 | 0.000971 | 1.52 | AML | other | m | 2021-07-22T14:16:48.04 |
| IV.VITU.HHE. | ML:3.2 | 0.0024850000000000002 | 1.46 | AML | other | m | 2021-07-22T14:16:49.10 |
| IV.SACR.HNE. | ML:2.5 | 0.0006559999999999999 | 0.94 | AML | other | m | 2021-07-22T14:16:49.61 |
| IV.GATE.HNE. | ML:2.6 | 0.0007330000000000001 | 0.86 | AML | other | m | 2021-07-22T14:16:49.05 |
| IV.GATE.HHE. | ML:2.6 | 0.0007455000000000001 | 0.86 | AML | other | m | 2021-07-22T14:16:49.05 |
| IV.SACR.HHN. | ML:2.6 | 0.0007745 | 0.6 | AML | other | m | 2021-07-22T14:16:49.30 |
| IV.SACR.HNN. | ML:2.6 | 0.000814 | 0.56 | AML | other | m | 2021-07-22T14:16:49.32 |
| IV.VITU.HNE. | ML:2.7 | 0.0007695 | 0.42 | AML | other | m | 2021-07-22T14:16:51.01 |
| IV.VITU.HHN. | ML:3.2 | 0.0023450000000000003 | 1.64 | AML | other | m | 2021-07-22T14:16:51.10 |
| IV.VITU.HNN. | ML:3.2 | 0.002185 | 0.68 | AML | other | m | 2021-07-22T14:16:51.11 |
| IV.APRC.HHE. | ML:3.1 | 0.0010785 | 0.44 | AML | other | m | 2021-07-22T14:16:54.35 |
| IV.TREM.HHN. | ML:3.3 | 0.0018249999999999998 | 0.34 | AML | other | m | 2021-07-22T14:16:55.41 |
| IV.TREM.HNE. | ML:3.6 | 0.0037800000000000004 | 0.56 | AML | other | m | 2021-07-22T14:16:55.15 |
| IV.PSB1.HNN. | ML:2.9 | 0.0010155000000000001 | 0.98 | AML | other | m | 2021-07-22T14:16:55.93 |
| IV.PSB1.HHN. | ML:2.9 | 0.0010494999999999999 | 1 | AML | other | m | 2021-07-22T14:16:55.94 |
| IV.TREM.HHE. | ML:3.6 | 0.003585 | 0.58 | AML | other | m | 2021-07-22T14:16:55.15 |
| IV.VTIR.HHN. | ML:2.8 | 0.0004595 | 0.44 | AML | other | m | 2021-07-22T14:16:55.47 |
| OT.OT05.EHN. | ML:2.9 | 0.0006879999999999999 | 1.54 | AML | other | m | 2021-07-22T14:16:55.86 |
| IV.PSB1.HHE. | ML:2.7 | 0.0006799999999999999 | 1.1 | AML | other | m | 2021-07-22T14:16:56.02 |
| IV.PSB1.HNE. | ML:2.7 | 0.000652 | 1.12 | AML | other | m | 2021-07-22T14:16:56.02 |
| IV.APRC.HHN. | ML:3.4 | 0.0019649999999999997 | 1.56 | AML | other | m | 2021-07-22T14:16:56.82 |
| IV.TREM.HNN. | ML:3.4 | 0.00188 | 1.42 | AML | other | m | 2021-07-22T14:16:57.14 |
| OT.OT05.EHE. | ML:3.0 | 0.0007695 | 0.46 | AML | other | m | 2021-07-22T14:16:57.43 |
| IV.SMA1.EHE. | ML:2.8 | 0.0005489999999999999 | 1.22 | AML | other | m | 2021-07-22T14:16:59.95 |
| OT.OT12.EHN. | ML:3.2 | 0.0008959999999999999 | 0.8 | AML | other | m | 2021-07-22T14:17:01.49 |
| OT.OT12.EHE. | ML:2.9 | 0.0004265 | 0.26 | AML | other | m | 2021-07-22T14:17:01.58 |
| IV.SMA1.EHN. | ML:2.7 | 0.00042699999999999997 | 0.42 | AML | other | m | 2021-07-22T14:17:02.27 |
| IV.SNAL.HNE. | ML:3.1 | 0.000852 | 0.84 | AML | other | m | 2021-07-22T14:17:03.34 |
| IV.SNAL.HNN. | ML:3.2 | 0.001135 | 0.94 | AML | other | m | 2021-07-22T14:17:03.33 |
| IV.SNAL.HHN. | ML:3.2 | 0.0011005000000000001 | 0.96 | AML | other | m | 2021-07-22T14:17:03.32 |
| IV.MTRA.EHE. | ML:2.8 | 0.00047999999999999996 | 1.48 | AML | other | m | 2021-07-22T14:17:03.23 |
| IV.MSAG.HNE. | ML:3.1 | 0.0007484999999999999 | 0.3 | AML | other | m | 2021-07-22T14:17:04.26 |
| IV.MSAG.HHE. | ML:2.7 | 0.000307 | 0.28 | AML | other | m | 2021-07-22T14:17:04.40 |
| IV.MTRA.HNE. | ML:2.9 | 0.000502 | 0.5 | AML | other | m | 2021-07-22T14:17:04.23 |
| IV.SNAL.HHE. | ML:3.1 | 0.000911 | 0.42 | AML | other | m | 2021-07-22T14:17:05.34 |
| IV.MCRV.HHE. | ML:2.7 | 0.0002745 | 0.9 | AML | other | m | 2021-07-22T14:17:05.73 |
| IV.MTRA.HNN. | ML:2.9 | 0.0005105 | 0.6 | AML | other | m | 2021-07-22T14:17:05.13 |
| IV.MTRA.EHN. | ML:2.8 | 0.000461 | 0.6 | AML | other | m | 2021-07-22T14:17:05.14 |
| IV.RM33.HNE. | ML:2.7 | 0.00040300000000000004 | 0.46 | AML | other | m | 2021-07-22T14:17:05.51 |
| IV.VTIR.HHE. | ML:2.7 | 0.000371 | 0.94 | AML | other | m | 2021-07-22T14:17:05.36 |
| IV.MCRV.HHN. | ML:3.0 | 0.0005765 | 1.52 | AML | other | m | 2021-07-22T14:17:06.21 |
| IX.NSC3.EHE.02 | ML:2.8 | 0.00041999999999999996 | 0.88 | AML | other | m | 2021-07-22T14:17:06.47 |
| IV.RM33.EHE. | ML:2.7 | 0.000442 | 1.22 | AML | other | m | 2021-07-22T14:17:06.89 |
| IX.NSC3.EHN.02 | ML:2.7 | 0.0003275 | 1 | AML | other | m | 2021-07-22T14:17:07.63 |
| OT.OT13.EHN. | ML:3.9 | 0.003785 | 0.42 | AML | other | m | 2021-07-22T14:17:08.74 |
| OT.OT13.EHE. | ML:3.6 | 0.00184 | 0.56 | AML | other | m | 2021-07-22T14:17:08.70 |
| IV.MSAG.HHN. | ML:3.1 | 0.0007155 | 1.6 | AML | other | m | 2021-07-22T14:17:09.95 |
| IV.MSAG.HNN. | ML:3.5 | 0.0016699999999999998 | 1.62 | AML | other | m | 2021-07-22T14:17:09.96 |
| IV.RM33.HNN. | ML:2.7 | 0.000376 | 0.68 | AML | other | m | 2021-07-22T14:17:10.71 |
| IV.RM33.EHN. | ML:2.6 | 0.000321 | 0.68 | AML | other | m | 2021-07-22T14:17:10.73 |
| IX.COL3.HHE.02 | ML:3.0 | 0.0005055000000000001 | 1.28 | AML | other | m | 2021-07-22T14:17:12.08 |
| IX.COL3.HHN.02 | ML:3.0 | 0.00047099999999999996 | 0.56 | AML | other | m | 2021-07-22T14:17:12.84 |
TDMT - Time Domain Moment Tensor
Not available TDMT solution for this seismic event.
Fault Plane solutions in the area
Fault Plane solutions
The map reports the fault plane solutions for earthquakes in the region from 1977 to the date of this event. Red moment tensors are determined using the Regional Centroid Moment Tensor technique (RCMT, http://www.bo.ingv.it/RCMT) applied for earthquakes with magnitude larger than 4.5 in the Euro-Mediterranenan area. Occasionally, when a station azimuthal coverage exists RCMTs can be obtained also for earthquakes with magnitude down to 4.0. The gray moment tensors are obtained with the Time Domain Moment Tensor method (TDMT, /tdmt). This technique is applied to earthquakes with magnitude ML greater than 3.2, when it is possible. The size of symbols scales with the calculated moment magnitude Mw.
