Earthquake with magnitude of ML 3.5 on date 21-01-2017 and time 10:59:28 (UTC) in region 1 km NE Barete (AQ)

A magnitude ML 3.5 earthquake occured in region: 1 km NE Barete (AQ), on

  • 21-01-2017 10:59:28 (UTC)
  • 21-01-2017 11:59:28 (UTC +01:00) Italian time

and geographic coordinates (lat, lon) 42.4580, 13.2860 at 16 km depth.

The earthquake was located by: Bollettino Sismico Italiano INGV.

Search earthquakes: Any within 30 km radius

The values of hypocentral coordinates and magnitude may be revised at a later time as more information becomes available.

Hai sentito il terremoto? Clicca qui

Did you feel it? Fill in the questionnaire.

Municipalities within 20 km from the epicenter

Distances are determinated based on the geographic coordintes of the (Istat).
Municipality Region Dist Inh Cum Inh
Barete AQ 1 737 737
Pizzoli AQ 2 4326 5063
Cagnano Amiterno AQ 5 1369 6432
Capitignano AQ 7 665 7097
Montereale AQ 8 2581 9678
Scoppito AQ 10 3727 13405
Campotosto AQ 13 542 13947
Borbona RI 14 617 14564
L'Aquila AQ 15 69753 84317
Posta RI 17 694 85011
Antrodoco RI 17 2588 87599
Tornimparte AQ 19 3187 90786
Lucoli AQ 19 1011 91797
Micigliano RI 19 127 91924
Crognaleto TE 19 1297 93221
Amatrice RI 19 2657 95878
Borgo Velino RI 19 972 96850

Municipalities with at least 50000 inhabitants

An earthquake occurred to
15 Km NW of L'Aquila (69753 inhabitants)
41 Km SW of Teramo (54892 inhabitants)
54 Km E of Terni (111501 inhabitants)
68 Km NE of Tivoli (56533 inhabitants)
69 Km NE of Guidonia Montecelio (88673 inhabitants)
71 Km W of Montesilvano (53738 inhabitants)
73 Km SE of Foligno (57155 inhabitants)
73 Km W of Chieti (51815 inhabitants)
76 Km W of Pescara (121014 inhabitants)
91 Km NE of Roma (2864731 inhabitants)
95 Km NE of Velletri (53303 inhabitants)
97 Km E of Viterbo (67173 inhabitants)
Recent and historical seismicity

These maps show the seismic activity in different time intervals, before the seismic event to which they refer. Data reported in the first two maps come from the analysis carried out in real time by the personnel of the INGV Operating Rooms, immediately after each earthquake. The third map shows data from 1985 to the date of the earthquake: the locations are reviewed by the seismological analysts of the INGV Italian Seismic Bulletin (Bollettino Sismico Italiano dell’INGV). The localization parameters (hypocentral coordinates and magnitude) are the best possible estimate with the data available to the INGV, but are constantly updated according to further data that become available. The location and magnitude parameters, subsequently reviewed by seismological analysts, may vary.

Earthquakes of the 3 days preceding this event

Earthquakes of the 3 days preceding this event

This map shows the earthquake epicenters with magnitude ≥ 0.0, localized with data recorded by the National Seismic Network and other collaborative networks both in Italy and in neighboring countries, in the 72 hours preceding this event. The size of the circle indicates the different classes of magnitude. The colors indicate the different time intervals preceding the seismic event. The black and white star is the epicenter of the current earthquake.
Earthquakes of the 90 days preceding this event

Earthquakes of the 90 days preceding this event

This map shows the earthquake epicenters with magnitude ≥ 2.0, localized with data recorded by the National Seismic Network and other collaborative networks both in Italy and in neighboring countries, in the 90 days preceding this event. The size of the circle indicates the different classes of magnitude. The colors indicate the different time intervals preceding the seismic event. The black and white star is the epicenter of the current earthquake.
Earthquakes from 1985 to the date of the event

Earthquakes from 1985 to the date of the event

This map shows the earthquake epicenters with magnitude ≥ 3.0, localized with data recorded by the National Seismic Network and other collaborative networks both in Italy and in neighboring countries, from 1985 to the date of this event. The size of the circle indicates the different classes of magnitude. The colors indicate the different time intervals preceding the seismic event. The black and white star is the epicenter of the current earthquake.
Earthquakes since 1000 AD until 2019

Earthquakes since 1000 AD until 2019

This map shows the epicenters of the historical earthquakes catalogue CPT15 (Catalogo Parametrico dei Terremoti Italiani, 2015 version 3.0, https://doi.org/10.13127/cpti/cpti15.3) since 1000 AD until 2019. The size of the square indicates the different classes of magnitude. For earthquakes with magnitude ≥ 6.0, it is also shown the year of occurrence and the magnitude value. The black and white star is the epicenter of the current earthquake.
Seismic hazard

Seismic hazard maps provide probabilistic estimates of the earthquake ground shaking exceeding a given threshold in a given geographic region within a given time window. Thus, it is not a deterministic prediction - a target that may be never reached given the complexity of the earthquake physical phenomenon - nor of the maximum expected earthquake since this has extremely low probabilities to occur.

In 2004, it was published the seismic hazard map of Italy (http://zonesismiche.mi.ingv.it) that provides a picture of the most hazardous geographic regions. The seismic hazard map of Italy (GdL MPS, 2004; rif. Ordinanza PCM del 28 aprile 2006, n. 3519, All. 1b) provides the 10% probability of exceedance in 50 years of the horizontal acceleration at rock sites (i.e., Vs30>800 m/s; cat. A, 3.2.1 of the D.M. 14.09.2005).

The colours indicate the various values of the ground acceleration that have 10% to be exceeded within 50 years. In general, the colours associated to low values of acceleration refer to areas that are less hazardous and stronger earthquakes repeat less frequently although they may still occur.

Seismic hazard map

Seismic hazard map

This map shows the seismic hazard map of Italy for the region where the earthquake occurred.
Shakemap

These three maps show the results of the analysis using the software ShakeMap designed to provide the level of ground shaking experienced in a region using the data recorded by seismometers and strong motion instruments and seismological information regarding the attenuation of the wavefield with distance and the site characteristics. The Shakemaps are determined for research purposes to provide fast estimates of the level of ground shaking produced by the earthquake. The maps are calculated automatically and updated as more data become available. See http://shakemap.ingv.it for additional information. The black star indicates the epicenter. The triangles show the accelerometric and velocimetric stations used in the calculation, colored according to the recorded shaking.

Intensity Shakemap

Intensity Shakemap

This map shows the distribution of instrumental intensities. The intensity is derived through an empirical law that correlates the recorded values of actual ground shaking, e.g., acceleration and velocity, with the macroseismic intensity for Italian earthquakes, as reported in the Italian Macroseismic Database (DBMI15, https://doi.org/10.13127/cpti/cpti15.3).
Peak ground acceleration Shakemap

Peak ground acceleration Shakemap

This map shows the distribution of peak ground acceleration expressed as percent of the acceleration of gravity (i.e., g = 9.81 m/s²).
Peak velocity Shakemap

Peak velocity Shakemap

This map shows the distribution of peak ground velocities expressed in cm/s.
Felt maps

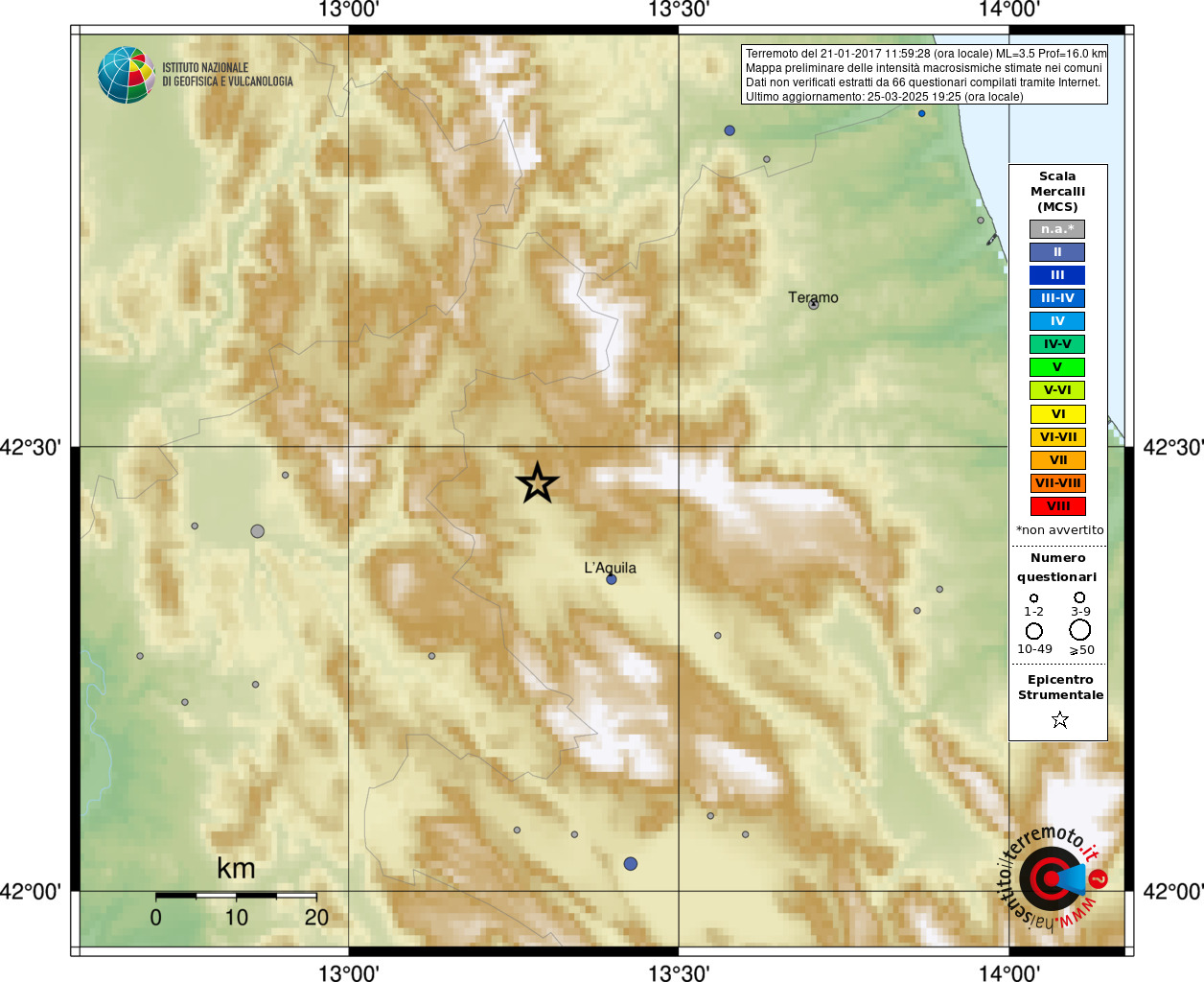

Preliminary map of the earthquake effects from the web questionnaire

Preliminary map of the earthquake effects from the web questionnaire

This map shows the distribution of earthquake resentment in the area, expressed in terms of intensity on the MCS scale (Mercalli-Cancani-Sieberg). Intensities are determined using data from questionnaires collected on the website http://www.hsit.it. The intensities shown are determined considering all the reports received from each municipality, and are all the more reliable the greater the number of questionnaires. The collected data are subjected to an automatic statistical filter, but are not checked individually. In particular, intensities greater than or equal to the VI degree of the MCS or EMS scale require on-site verification by specialized personnel. The black star is the epicenter of the earthquake that occurred. This map is updated every time citizens fill out new questionnaires. The number of questionnaires processed to obtain this map, the date and time of the last update are shown at the top right.
Locations history
Type Magnitude Date and Time (UTC) Latitude Longitude Depth (km) Published time (UTC) Author Location ID
Bulletin
Rev1000 		ML 3.5 2017-01-21
10:59:28		 42.4577 13.2857 16 2017-04-07
08:06:34		 Bollettino Sismico Italiano INGV 39703371
Reviewed
Rev100 		ML 3.5 2017-01-21
10:59:28		 42.4562 13.286 16 2017-01-21
11:13:15		 Sala Sismica INGV-Roma 39491111
Preferred location and magnitude until now.
Origin information

Origin

Field Value
Time (UTC) 2017-01-21 10:59:28 ± 0.03
Latitude 42.4577 ± 0.0009
Longitude 13.2857 ± 0.0024
Depth (km) 16 ± 0 (from location)
Evaluation mode of Origin manual
Evaluation status of Origin reviewed
Version 1000 -> BULLETIN-INGV
Event type earthquake
Origin ID 39703371

Uncertainty

Field Value
Preferred uncertainty description uncertainty ellipse
Semi-major axis of confidence ellipse (meter) 187
Semi-minor axis of confidence ellipse (meter) 49
Azimuth of major axis of confidence ellipse. Measured clockwise from South-North direction at epicenter (gradi) 258
Circular confidence region, given by single value of horizontal uncertainty (meter) 190.0
Confidence level of the uncertainty (%) 68

Quality

Field Value
Largest azimuthal gap in station distribution as seen from epicenter (degree) 38
Number of associated phases, regardless of their use for origin computation 161
Number of defining phases 161
RMS of the travel time residuals of the arrivals used for the origin computation (sec) 0.12
Epicentral distance of station closest to the epicenter (degree) 0.01889
Epicentral distance of station farthest from the epicenter (degree) 4.66208
Number of stations at which the event was observed 140
Number of stations from which data was used for origin computation 140
Magnitudes information

ML:3.5

Field Value
Value 3.5
Uncertainty 0.3
Num. used stations 66
Type of magnitude ML
Reference to an origin 39491111
Agency INGV
Autore Sala Sismica INGV-Roma
Time of creation (UTC) 2017-01-21 11:13:13

ML:3.5

Field Value
Value 3.5
Uncertainty 0.3
Num. used stations 91
Type of magnitude ML
Reference to an origin 39703371
Agency INGV
Autore Bollettino Sismico Italiano INGV
Time of creation (UTC) 2017-04-03 00:17:55
Picking and Arrival
SCNL Time Uncertainty Polarity Evaluation_mode Phase Azimuth Distance(km) Takeoff_angle Residual Weight
SI.ROSI.HHZ. 2017-01-21T11:00:38.83 0.6 undecidable manual P 344 517.4931 54 0.09 0
OX.ACOM.HHZ. 2017-01-21T11:00:31.20 0.6 undecidable manual P 2 454.101 54 0.35 0
OX.ZOU2.HHZ. 2017-01-21T11:00:31.01 0.6 undecidable manual P 357 455.5995 54 -0.02 0
IV.FVI.HHZ. 2017-01-21T11:00:31.53 0.6 undecidable manual P 355 460.8942 54 -0.16 0
OX.CLUD.HHZ. 2017-01-21T11:00:29.84 0.1 undecidable manual P 356 444.8214 54 0.14 0
OX.CIMO.HHZ. 2017-01-21T11:00:28.10 0.6 undecidable manual P 351 432.6447 54 -0.09 0
SI.LUSI.HHZ. 2017-01-21T11:00:28.37 0.6 undecidable manual P 335 430.7466 54 0.42 0
IV.STAL.HHZ. 2017-01-21T11:00:27.19 0.6 undecidable manual P 354 424.2531 54 0.05 0
IV.CTI.HHZ. 2017-01-21T11:00:26.64 0.6 undecidable manual P 343 418.9695 54 0.16 0
OX.MPRI.HHZ. 2017-01-21T11:00:26.58 0.6 undecidable manual P 357 420.357 54 -0.07 0
OX.CGRP.HHZ. 2017-01-21T11:00:24.17 0.6 undecidable manual P 343 397.602 54 0.35 0
IV.ROVR.HHZ. 2017-01-21T11:00:23.32 0.6 undecidable manual P 334 395.3043 54 -0.22 0
OX.SABO.HHZ. 2017-01-21T11:00:22.95 0.6 undecidable manual P 4 392.5071 54 -0.24 0
IV.NOCI.HHZ. 2017-01-21T11:00:21.10 0.6 undecidable manual P 119 363.9579 54 1.47 0
IV.AMUR.HHZ. 2017-01-21T11:00:15.79 0.6 undecidable manual P 121 324.3309 54 1.09 0
GU.MAIM.HHZ. 2017-01-21T11:00:08.68 1.0 undecidable manual P 307 277.8108 54 -0.23 0
CR.BRJN.HHZ. 2017-01-21T11:00:08.79 0.6 undecidable manual P 8 274.1145 54 0.33 0
IV.SGTA.HHZ. 2017-01-21T11:00:05.38 0.6 undecidable manual P 130 226.107 54 2.9 0
IV.MOCL.EHZ. 2017-01-21T11:00:04.08 0.1 undecidable manual P 316 241.6803 54 -0.34 0
IV.SNAL.HNE. 2017-01-21T11:00:04.69 0.6 undecidable manual P 136 232.989 54 1.35 0
IV.MSAG.HHZ. 2017-01-21T11:00:02.93 0.6 undecidable manual P 110 231.2907 54 -0.2 0
IV.SGRT.HHZ. 2017-01-21T11:00:01.54 0.6 undecidable manual P 110 216.8163 54 0.21 0
IV.RUFI.EHZ. 2017-01-21T11:00:00.67 0.6 undecidable manual P 317 210.0342 54 0.19 0
IV.APRC.EHZ. 2017-01-21T10:59:59.13 0.6 undecidable manual P 112 201.3429 54 -0.28 0
IV.OSSC.HNE. 2017-01-21T10:59:59.97 0.1 undecidable manual P 306 203.4408 54 0.31 0
IV.SFI.HNN. 2017-01-21T10:59:58.86 0.1 undecidable manual P 325 198.2571 54 -0.16 0
IV.FROS.HHZ. 2017-01-21T10:59:58.40 0.3 undecidable manual P 296 192.2631 54 0.13 0
IV.ASQU.HHE. 2017-01-21T10:59:57.92 0.6 undecidable manual P 321 191.6637 54 -0.28 0
IV.MELA.HHZ. 2017-01-21T10:59:56.41 0.6 undecidable manual P 118 172.9935 54 0.53 0
IV.MAON.HHZ. 2017-01-21T10:59:56.11 0.6 undecidable manual P 270 176.3901 54 -0.19 0
IV.SACR.HNN. 2017-01-21T10:59:56.11 0.6 undecidable manual P 135 166.0116 54 1.1 0
IV.PESA.HHZ. 2017-01-21T10:59:56.51 0.6 undecidable manual P 348 168.4092 54 1.21 0
IV.CRE.HHE. 2017-01-21T10:59:55.10 0.6 undecidable manual P 320 168.2094 54 -0.17 0
IV.CPGN.EHZ. 2017-01-21T10:59:55.18 0.6 undecidable manual P 333 168.3093 54 -0.1 0
IV.ARCI.HHZ. 2017-01-21T10:59:54.06 0.3 undecidable manual P 287 154.0347 92 0.73 0
IV.PARC.HHZ. 2017-01-21T10:59:54.00 0.6 undecidable manual P 328 157.0206 92 0.21 0
IV.SGG.HHN. 2017-01-21T10:59:54.32 1.0 undecidable manual P 142 149.2395 92 1.73 0
IV.MODR.HHE. 2017-01-21T10:59:53.56 0.6 undecidable manual P 161 153.5352 92 0.3 0
IV.SSP9.EHZ. 2017-01-21T10:59:53.76 0.6 undecidable manual P 323 155.2224 92 0.24 0
TV.SF11.HHZ. 2017-01-21T10:59:52.00 0.6 undecidable manual P 290 138.7611 92 1.02 0
IV.PE3.EHZ. 2017-01-21T10:59:52.82 0.6 undecidable manual P 335 151.5372 92 -0.13 0
IV.VAGA.HHZ. 2017-01-21T10:59:52.15 0.6 undecidable manual P 146 139.6602 92 1.03 0
TV.SF01.EHZ. 2017-01-21T10:59:52.75 0.6 undecidable manual P 286 145.9428 92 0.66 0
IV.ATMC.EHE. 2017-01-21T10:59:51.88 0.1 undecidable manual P 321 141.1476 92 0.54 0
IV.SENI.EHZ. 2017-01-21T10:59:51.66 0.6 undecidable manual P 358 138.4614 92 0.73 0
IV.BADI.EHZ. 2017-01-21T10:59:51.52 0.6 undecidable manual P 324 144.0447 92 -0.28 0
IV.NARO.HHZ. 2017-01-21T10:59:51.20 0.1 positive manual P 336 140.1486 92 0.01 0
IV.APEC.HNN. 2017-01-21T10:59:51.01 0.1 undecidable manual P 330 140.8479 92 -0.29 0
TV.SF03.EHN. 2017-01-21T10:59:51.35 0.6 undecidable manual P 287 136.0638 92 0.78 0
IV.CAFI.HHZ. 2017-01-21T10:59:51.68 0.6 undecidable manual P 312 144.3444 92 -0.17 0
IV.TRIV.HHN. 2017-01-21T10:59:51.20 0.6 undecidable manual P 126 129.2706 92 1.68 0
TV.SF13.HHN. 2017-01-21T10:59:51.92 0.1 undecidable manual P 287 141.747 92 0.48 0
IV.PCRO.HNE. 2017-01-21T10:59:50.28 0.3 undecidable manual P 9 129.1707 92 0.78 0
IV.PIEI.HHZ. 2017-01-21T10:59:50.31 0.3 undecidable manual P 333 134.1657 92 0.03 0
IV.ATPC.HHE. 2017-01-21T10:59:50.28 0.3 undecidable manual P 330 131.868 92 0.35 0
TV.SF14.HHN. 2017-01-21T10:59:50.90 0.1 undecidable manual P 284 140.3484 92 -0.33 0
IV.COR1.EHZ. 2017-01-21T10:59:50.77 0.6 undecidable manual P 350 132.2676 92 0.79 0
IV.T1220.HNZ. 2017-01-21T10:59:50.80 0.3 undecidable manual S 348 74.1702 95 0.34 37
IV.MCIV.HHZ. 2017-01-21T10:59:50.78 0.6 undecidable manual P 286 136.0638 92 0.21 0
IV.MPAG.EHZ. 2017-01-21T10:59:50.77 0.1 negative manual P 342 136.7631 92 0.09 0
IV.ATMI.HHZ. 2017-01-21T10:59:49.65 0.3 undecidable manual P 320 127.6722 92 0.38 0
IV.FRES.HHZ. 2017-01-21T10:59:49.36 0.3 undecidable manual P 115 125.7741 92 0.38 0
IV.LATE.HHZ. 2017-01-21T10:59:49.00 0.6 undecidable manual P 279 122.2887 93 0.55 0
IV.ATBU.EHZ. 2017-01-21T10:59:49.58 0.3 undecidable manual P 332 127.7721 92 0.28 0
IV.FRON.EHZ. 2017-01-21T10:59:49.00 0.1 positive manual P 339 126.0738 92 -0.03 0
IV.AOI.HHZ. 2017-01-21T10:59:49.05 0.3 undecidable manual P 12 123.8871 93 0.36 0
IV.GUMA.HHZ. 2017-01-21T10:59:49.84 0.6 undecidable manual S 3 67.2771 95 1.21 24
IV.SACS.HHZ. 2017-01-21T10:59:48.75 1.0 undecidable manual P 292 120.3906 93 0.6 0
IV.ATVA.EHE. 2017-01-21T10:59:48.38 0.1 undecidable manual P 319 122.0889 93 -0.04 0
IV.FDMO.HHZ. 2017-01-21T10:59:48.60 0.3 undecidable manual S 346 66.1893 95 0.25 54
IV.BAT1.EHZ.01 2017-01-21T10:59:48.54 0.6 undecidable manual P 326 123.5874 93 -0.1 0
IV.BAT3.EHN.01 2017-01-21T10:59:48.83 0.6 undecidable manual P 326 126.5733 92 -0.27 0
IV.MIDA.HNZ. 2017-01-21T10:59:48.05 0.6 undecidable manual P 138 120.6903 93 -0.14 0
IV.BAT2.EHE. 2017-01-21T10:59:48.71 0.1 undecidable manual P 325 123.7872 93 0.04 0
IV.ATVO.HHZ. 2017-01-21T10:59:48.90 0.1 negative manual P 325 124.986 92 0.04 0
IV.TOLF.HHZ. 2017-01-21T10:59:47.42 0.3 undecidable manual P 248 114.1968 93 0.22 0
IV.ATFO.HHN. 2017-01-21T10:59:47.48 0.1 undecidable manual P 330 116.2947 93 -0.05 0
IV.ARVD.HHZ. 2017-01-21T10:59:47.87 0.1 negative manual P 347 118.6923 93 -0.03 0
IV.SSFR.HHZ. 2017-01-21T10:59:47.55 0.3 undecidable manual P 340 115.995 93 0.07 0
IV.CERA.HHZ. 2017-01-21T10:59:47.00 0.3 undecidable manual P 147 112.8981 93 0 0
IV.ATSC.EHE. 2017-01-21T10:59:47.50 0.3 undecidable manual P 336 117.6933 93 -0.24 0
IV.MGAB.HHZ. 2017-01-21T10:59:46.76 0.6 undecidable manual P 298 108.2139 93 0.49 0
IV.RNI2.HHZ. 2017-01-21T10:59:46.46 0.6 undecidable manual P 139 110.0121 93 -0.09 0
IV.PP3.EHZ. 2017-01-21T10:59:46.63 0.6 undecidable manual P 14 105.4167 93 0.78 0
IV.MURB.HHZ. 2017-01-21T10:59:46.58 0.3 undecidable manual P 326 108.7134 93 0.23 0
IV.T1221.HNZ. 2017-01-21T10:59:46.20 0.3 undecidable manual S 321 57.1983 96 0.23 68
IV.LATB.EHZ. 2017-01-21T10:59:46.72 0.1 undecidable manual P 194 110.2119 93 0.14 0
IV.CING.HHZ. 2017-01-21T10:59:45.22 0.1 negative manual P 356 102.12 93 -0.12 0
IV.GIUL.HHZ. 2017-01-21T10:59:45.23 0.6 undecidable manual P 181 99.8223 93 0.25 0
IV.CIMA.HNZ. 2017-01-21T10:59:45.56 0.6 undecidable manual P 18 99.123 93 0.68 0
IV.FOSV.EHZ. 2017-01-21T10:59:45.26 0.1 negative manual P 336 102.2199 93 -0.09 0
IV.SAMA.HHZ. 2017-01-21T10:59:44.63 0.6 undecidable manual P 217 94.3389 93 0.49 1
IV.ATCC.EHZ. 2017-01-21T10:59:44.52 0.1 undecidable manual P 327 96.3258 93 0.08 1
IV.T1215.EHZ. 2017-01-21T10:59:44.60 0.3 undecidable manual S 318 51.1155 97 0.25 72
IV.EL6.EHZ. 2017-01-21T10:59:44.53 0.1 negative manual P 351 97.8243 93 -0.15 0
IV.T1216.EHZ. 2017-01-21T10:59:44.90 0.3 undecidable manual S 336 52.7028 97 0.13 73
IV.CADA.HNZ. 2017-01-21T10:59:44.17 0.6 undecidable manual P 25 90.4428 94 0.63 4
IV.MC2.EHZ. 2017-01-21T10:59:44.70 0.3 undecidable manual S 351 50.9157 97 0.4 69
IV.MTL1.HNZ. 2017-01-21T10:59:43.71 0.3 undecidable manual P 346 91.4418 94 0.01 5
IV.LRP.HHZ. 2017-01-21T10:59:43.66 0.6 undecidable manual P 164 93.24 93 -0.32 2
IV.GAG1.HNZ. 2017-01-21T10:59:43.26 0.3 undecidable manual P 348 88.3449 94 0.04 9
IV.SNTG.HHZ. 2017-01-21T10:59:43.69 0.1 negative manual P 343 92.8404 93 -0.21 5
IV.POFI.HHZ. 2017-01-21T10:59:43.47 0.6 undecidable manual P 157 89.3439 94 0.1 5
IV.LPEL.HHZ. 2017-01-21T10:59:42.28 1.0 undecidable manual P 121 86.6466 94 -0.68 3
IV.NRCA.HNZ. 2017-01-21T10:59:42.40 0.6 undecidable manual S 342 44.0226 99 -0.06 49
IV.SSM1.HNZ. 2017-01-21T10:59:42.74 0.3 undecidable manual P 354 85.9473 94 -0.12 13
IV.PIO1.HNZ. 2017-01-21T10:59:42.26 0.3 undecidable manual P 343 83.6496 94 -0.23 17
IV.SEF1.HNZ. 2017-01-21T10:59:42.01 0.3 undecidable manual P 340 81.252 94 -0.12 22
IV.RMP.HHZ. 2017-01-21T10:59:42.76 1.0 undecidable manual P 214 86.247 94 -0.15 4
IV.FIU1.HNZ. 2017-01-21T10:59:42.89 0.3 undecidable manual P 341 86.0472 94 0.02 13
IV.MDAR.HNZ. 2017-01-21T10:59:42.19 0.3 undecidable manual P 352 82.3509 94 -0.11 20
IV.GUAR.HHZ. 2017-01-21T10:59:41.22 0.6 undecidable manual P 178 73.5708 95 0.26 26
IV.RCAV.EHZ. 2017-01-21T10:59:41.49 0.6 undecidable manual P 203 73.2711 95 0.58 24
IV.T1217.EHZ. 2017-01-21T10:59:41.60 0.3 undecidable manual S 314 40.4262 100 0.08 74
IV.MNTP.HNZ. 2017-01-21T10:59:41.79 0.1 undecidable manual P 11 76.8675 94 0.33 41
IV.TRTR.HHZ. 2017-01-21T10:59:40.20 0.3 undecidable manual P 53 64.3911 95 0.67 51
IV.T1212.HNZ. 2017-01-21T10:59:40.80 0.3 undecidable manual S 329 38.0286 101 -0.11 73
IV.T1220.HNZ. 2017-01-21T10:59:40.88 0.1 negative manual P 348 74.1702 95 -0.16 51
IV.SRES.HHZ. 2017-01-21T10:59:40.05 0.3 undecidable manual P 249 68.1762 95 -0.07 52
IV.GUMA.HHZ. 2017-01-21T10:59:40.08 0.1 undecidable manual P 3 67.2771 95 0.1 72
IV.T1211.EHZ. 2017-01-21T10:59:40.40 0.3 undecidable manual S 283 36.1416 102 -0.01 75
IV.MOMA.HHZ. 2017-01-21T10:59:40.38 0.1 negative manual P 304 69.8745 95 -0.01 65
IV.CESI.HHZ. 2017-01-21T10:59:40.02 0.1 negative manual P 333 68.1762 95 -0.1 69
IV.VVLD.HHZ. 2017-01-21T10:59:40.44 0.3 undecidable manual P 157 70.8735 95 -0.1 46
IV.MTCE.HHZ. 2017-01-21T10:59:39.66 0.1 positive manual P 223 65.6898 95 -0.09 75
IV.FDMO.HHZ. 2017-01-21T10:59:39.60 0.1 negative manual P 346 66.1893 95 -0.22 73
IV.OFFI.HHZ. 2017-01-21T10:59:39.68 0.1 undecidable manual P 32 62.1933 96 0.48 78
IV.T1213.HNZ. 2017-01-21T10:59:39.10 0.6 undecidable manual S 336 32.3454 104 -0.32 47
IV.CERT.HHZ. 2017-01-21T10:59:39.22 0.1 positive manual P 204 61.6938 96 0.09 86
IV.T1218.EHZ. 2017-01-21T10:59:38.00 0.1 undecidable manual S 329 27.3504 108 -0.13 98
IV.CESX.HHZ. 2017-01-21T10:59:38.68 0.1 positive manual P 287 59.496 96 -0.12 89
IV.FEMA.HNZ. 2017-01-21T10:59:38.57 0.1 negative manual P 341 59.1963 96 -0.17 89
IV.T1221.HNZ. 2017-01-21T10:59:38.33 0.1 negative manual P 321 57.1983 96 -0.12 92
IV.T1202.EHZ. 2017-01-21T10:59:38.50 0.3 undecidable manual S 350 27.75 107 0.28 71
IV.T1216.EHZ. 2017-01-21T10:59:37.54 0.1 negative manual P 336 52.7028 97 -0.21 95
IV.MC2.EHZ. 2017-01-21T10:59:37.40 0.1 negative manual P 351 50.9157 97 -0.08 98
IV.FIAM.HHZ. 2017-01-21T10:59:37.80 0.1 undecidable manual S 213 25.1526 110 0.22 96
IV.T1215.EHZ. 2017-01-21T10:59:37.32 0.1 negative manual P 318 51.1155 97 -0.19 96
IV.PTQR.HHZ. 2017-01-21T10:59:37.23 0.1 negative manual P 169 49.2174 98 0.01 100
IV.LNSS.HHZ. 2017-01-21T10:59:37.70 0.3 undecidable manual S 309 25.752 109 -0.02 75
IV.NRCA.HNZ. 2017-01-21T10:59:36.21 0.1 negative manual P 342 44.0226 99 -0.21 96
IV.ARRO.EHZ. 2017-01-21T10:59:36.41 0.1 positive manual P 288 44.622 99 -0.1 98
IV.GIGS.HHZ. 2017-01-21T10:59:36.70 0.3 undecidable manual S 91 23.5542 112 -0.47 69
IV.T1299.HNZ. 2017-01-21T10:59:36.10 0.3 undecidable manual S 359 19.5693 118 -0.11 74
IV.T1212.HNZ. 2017-01-21T10:59:35.36 0.1 negative manual P 329 38.0286 101 -0.16 97
IV.T1217.EHZ. 2017-01-21T10:59:35.76 0.1 negative manual P 314 40.4262 100 -0.11 98
IV.T1211.EHZ. 2017-01-21T10:59:35.14 0.1 positive manual P 283 36.1416 102 -0.09 98
IV.T1213.HNZ. 2017-01-21T10:59:34.55 0.1 negative manual P 336 32.3454 104 -0.12 98
IV.CAMP.HHZ. 2017-01-21T10:59:34.40 0.3 undecidable manual S 49 13.2756 132 -0.43 70
IV.T1202.EHZ. 2017-01-21T10:59:34.12 0.1 negative manual P 350 27.75 107 0.15 97
IV.FAGN.HHZ. 2017-01-21T10:59:34.75 0.1 negative manual P 131 32.4453 104 0.08 99
IV.GIGS.HHZ. 2017-01-21T10:59:33.13 0.1 negative manual P 91 23.5542 112 -0.23 96
IV.FIAM.HHZ. 2017-01-21T10:59:33.74 0.1 positive manual P 213 25.1526 110 0.14 98
IV.T1218.EHZ. 2017-01-21T10:59:33.86 0.1 negative manual P 329 27.3504 108 -0.06 99
IV.RM33.HNZ. 2017-01-21T10:59:33.80 0.1 undecidable manual S 314 8.0808 147 -0.12 99
IV.LNSS.HHZ. 2017-01-21T10:59:33.69 0.1 positive manual P 309 25.752 109 0.01 100
IV.T1247.HHZ. 2017-01-21T10:59:33.40 0.3 undecidable manual S 150 2.0979 171 0.05 73
IV.T1299.HNZ. 2017-01-21T10:59:32.84 0.1 negative manual P 359 19.5693 118 0.03 99
IV.RM33.HNZ. 2017-01-21T10:59:31.58 0.1 positive manual P 314 8.0808 147 0.09 98
IV.T1247.HHZ. 2017-01-21T10:59:31.30 0.1 negative manual P 150 2.0979 171 0.14 96
IV.CAMP.HHZ. 2017-01-21T10:59:31.95 0.1 positive manual P 49 13.2756 132 -0.06 100
Station Magnitude and Amplitude
SCNL mag Generic_amplitude Period Type Category Unit Time_window_reference
IV.AMUR.HHN. ML:3.1 0.00012255 0.7 AML other m 2017-01-21T11:01:16.05
IV.AMUR.HHE. ML:3.1 0.0001305 1.26 AML other m 2017-01-21T11:01:20.72
IV.AOI.HHE. ML:3.6 0.0030800000000000003 0.86 AML other m 2017-01-21T11:00:10.48
IV.AOI.HHN. ML:3.6 0.002745 0.4 AML other m 2017-01-21T11:00:10.87
IV.APRC.EHE. ML:3.2 0.0005015000000000001 1.14 AML other m 2017-01-21T11:00:28.92
IV.APRC.EHN. ML:3.4 0.0006734999999999999 0.52 AML other m 2017-01-21T11:00:34.72
MN.AQU.HLE. ML:3.1 0.010324999999999999 0.54 AML other m 2017-01-21T10:59:39.51
MN.AQU.HHE. ML:3.1 0.010895 0.54 AML other m 2017-01-21T10:59:39.51
MN.AQU.HHN. ML:3.2 0.0128 0.7 AML other m 2017-01-21T10:59:35.58
MN.AQU.HLN. ML:3.2 0.01225 0.78 AML other m 2017-01-21T10:59:37.45
IV.ARRO.EHN. ML:3.5 0.00923 0.64 AML other m 2017-01-21T10:59:44.52
IV.ARRO.EHE. ML:3.4 0.0067599999999999995 0.96 AML other m 2017-01-21T10:59:45.28
IV.ARVD.HHE. ML:3.3 0.001593 0.52 AML other m 2017-01-21T11:00:05.65
IV.ARVD.HHN. ML:3.2 0.00124 1.14 AML other m 2017-01-21T11:00:13.26
IV.ASSB.HHE. ML:3.6 0.005775000000000001 0.5 AML other m 2017-01-21T10:59:55.66
IV.ASSB.HHN. ML:3.5 0.004475 1.06 AML other m 2017-01-21T10:59:56.85
IV.ATCC.EHN. ML:3.5 0.003525 0.64 AML other m 2017-01-21T10:59:59.64
IV.ATCC.EHE. ML:3.6 0.00383 1.3 AML other m 2017-01-21T11:00:01.19
IV.ATMI.HHE. ML:3.6 0.00235 0.64 AML other m 2017-01-21T11:00:13.37
IV.ATMI.HHN. ML:3.7 0.0036799999999999997 0.62 AML other m 2017-01-21T11:00:16.19
IV.ATVO.HHE. ML:3.2 0.0011909999999999998 1.34 AML other m 2017-01-21T11:00:11.05
IV.ATVO.HHN. ML:3.2 0.0011949999999999999 1.58 AML other m 2017-01-21T11:00:09.00
IV.BADI.EHN. ML:3.1 0.0007335 0.4 AML other m 2017-01-21T11:00:25.40
IV.BADI.EHE. ML:2.0 0.0000594 0.36 AML other m 2017-01-21T11:00:26.36
IV.CAFI.HHE. ML:3.2 0.0009260000000000001 0.78 AML other m 2017-01-21T11:00:13.42
IV.CAFI.HHN. ML:3.0 0.0006325 1.02 AML other m 2017-01-21T11:00:18.94
IV.CAMP.HHE. ML:3.1 0.010524999999999998 1.4 AML other m 2017-01-21T10:59:35.75
IV.CAMP.HHN. ML:3.1 0.010235 0.34 AML other m 2017-01-21T10:59:35.57
IV.CERA.HHE. ML:3.2 0.0014750000000000002 0.62 AML other m 2017-01-21T11:00:21.31
IV.CERA.HNE. ML:3.2 0.0014500000000000001 0.62 AML other m 2017-01-21T11:00:21.31
IV.CERA.HHN. ML:3.4 0.00185 0.6 AML other m 2017-01-21T11:00:16.39
IV.CERA.HNN. ML:3.4 0.00181 0.6 AML other m 2017-01-21T11:00:16.39
IV.CERT.HHN. ML:3.1 0.002335 0.92 AML other m 2017-01-21T10:59:49.57
IV.CERT.HHE. ML:3.4 0.00458 0.46 AML other m 2017-01-21T10:59:54.65
IV.CESI.HHN. ML:3.8 0.01145 1.62 AML other m 2017-01-21T10:59:52.14
IV.CESI.HHE. ML:3.6 0.007789999999999999 0.24 AML other m 2017-01-21T10:59:51.84
IV.CESX.HHE. ML:3.6 0.008260000000000002 0.48 AML other m 2017-01-21T10:59:50.62
IV.CESX.HHN. ML:3.6 0.008995000000000001 0.26 AML other m 2017-01-21T10:59:48.73
OX.CGRP.HHE. ML:3.6 0.0002385 0.74 AML other m 2017-01-21T11:01:12.73
OX.CGRP.HNE. ML:3.6 0.0002575 0.74 AML other m 2017-01-21T11:01:12.37
OX.CGRP.HHN. ML:3.5 0.0001985 0.48 AML other m 2017-01-21T11:01:09.58
OX.CGRP.HNN. ML:3.6 0.000228 0.52 AML other m 2017-01-21T11:01:09.59
OX.CIMO.HHN. ML:3.0 0.00004305 0.6 AML other m 2017-01-21T11:01:17.23
OX.CIMO.HHE. ML:3.0 0.000049000000000000005 0.42 AML other m 2017-01-21T11:01:16.75
IV.CING.HHN. ML:3.9 0.007995 0.22 AML other m 2017-01-21T11:00:00.32
IV.CING.HHE. ML:3.8 0.006605000000000001 0.32 AML other m 2017-01-21T11:00:00.27
OX.CLUD.HHN. ML:3.3 0.00008545 0.88 AML other m 2017-01-21T11:01:50.80
OX.CLUD.HHE. ML:3.2 0.0000616 1.24 AML other m 2017-01-21T11:01:52.87
IV.COR1.EHN. ML:3.8 0.0035499999999999998 0.24 AML other m 2017-01-21T11:00:12.78
IV.COR1.EHE. ML:3.7 0.002885 1.54 AML other m 2017-01-21T11:00:14.77
IV.CTI.HHE. ML:3.5 0.0001635 0.54 AML other m 2017-01-21T11:01:20.60
IV.CTI.HHN. ML:3.5 0.0001595 1.72 AML other m 2017-01-21T11:01:16.09
IV.EL6.EHN. ML:4.0 0.009855000000000001 0.28 AML other m 2017-01-21T11:00:01.46
IV.EL6.EHE. ML:3.9 0.00815 0.18 AML other m 2017-01-21T11:00:02.06
IV.FAGN.HHN. ML:3.5 0.013 0.56 AML other m 2017-01-21T10:59:45.74
IV.FAGN.HHE. ML:3.7 0.01905 0.48 AML other m 2017-01-21T10:59:44.47
IV.FDMO.HHN. ML:3.8 0.01145 0.2 AML other m 2017-01-21T10:59:50.85
IV.FDMO.HHE. ML:3.7 0.008205 0.32 AML other m 2017-01-21T10:59:49.61
IV.FIAM.HHE. ML:3.4 0.0148 1.34 AML other m 2017-01-21T10:59:39.96
IV.FIAM.HHN. ML:3.1 0.007015 0.5 AML other m 2017-01-21T10:59:42.59
IV.FOSV.EHN. ML:3.5 0.002855 0.36 AML other m 2017-01-21T11:00:02.31
IV.FOSV.EHE. ML:3.3 0.002075 0.38 AML other m 2017-01-21T11:00:09.54
IV.FRES.HHN. ML:3.0 0.0007875000000000001 1.02 AML other m 2017-01-21T11:00:18.00
IV.FRES.HHE. ML:3.1 0.0008874999999999999 0.68 AML other m 2017-01-21T11:00:11.09
IV.FRON.EHE. ML:3.4 0.0016099999999999999 1.58 AML other m 2017-01-21T11:00:14.84
IV.FRON.EHN. ML:3.5 0.002145 0.26 AML other m 2017-01-21T11:00:14.36
IV.FVI.HHE. ML:3.2 0.00006225 1.58 AML other m 2017-01-21T11:01:21.90
IV.FVI.HHN. ML:3.3 0.0000823 0.64 AML other m 2017-01-21T11:01:53.51
IV.GAG1.HNN. ML:4.2 0.0184 1.46 AML other m 2017-01-21T11:00:04.01
IV.GAG1.HNE. ML:4.2 0.016550000000000002 0.28 AML other m 2017-01-21T10:59:58.37
IV.GIGS.HHE. ML:2.9 0.00395 0.7 AML other m 2017-01-21T10:59:38.08
IV.GIGS.HHN. ML:2.8 0.003745 0.42 AML other m 2017-01-21T10:59:38.71
IV.GIUL.HHN. ML:3.1 0.001315 0.48 AML other m 2017-01-21T11:00:04.50
IV.GIUL.HHE. ML:3.1 0.00138 0.58 AML other m 2017-01-21T11:00:00.48
IV.GUAR.HHN. ML:3.5 0.004849999999999999 0.72 AML other m 2017-01-21T10:59:53.59
IV.GUAR.HHE. ML:3.3 0.003225 0.38 AML other m 2017-01-21T10:59:53.57
IV.GUMA.HHE. ML:4.4 0.048549999999999996 0.24 AML other m 2017-01-21T10:59:50.34
IV.GUMA.HHN. ML:4.4 0.0443 0.32 AML other m 2017-01-21T10:59:51.56
IV.GUMA.HNE. ML:4.3 0.03125 0.26 AML other m 2017-01-21T10:59:51.56
IV.GUMA.HNN. ML:4.5 0.052099999999999994 0.28 AML other m 2017-01-21T10:59:50.48
SL.LJU.BHE. ML:4.0 0.0006 1.2 AML other m 2017-01-21T11:01:37.21
SL.LJU.BHN. ML:4.1 0.000789 1.4 AML other m 2017-01-21T11:01:11.06
IV.LNSS.HHN. ML:3.8 0.03545 0.38 AML other m 2017-01-21T10:59:38.30
IV.LNSS.HHE. ML:3.8 0.0363 0.82 AML other m 2017-01-21T10:59:38.37
IV.LPEL.HHE. ML:3.4 0.00283 1.04 AML other m 2017-01-21T11:00:03.91
IV.LPEL.HHN. ML:3.3 0.002605 0.72 AML other m 2017-01-21T11:00:02.41
IV.LRP.HHN. ML:3.1 0.0012999999999999997 0.46 AML other m 2017-01-21T11:00:04.69
IV.LRP.HHE. ML:2.9 0.0009670000000000001 0.84 AML other m 2017-01-21T11:00:09.43
SI.LUSI.HHE. ML:3.3 0.00009625000000000001 0.84 AML other m 2017-01-21T11:01:21.35
SI.LUSI.HHN. ML:3.5 0.00014050000000000003 0.2 AML other m 2017-01-21T11:01:16.34
IV.MCIV.HHE. ML:3.1 0.0007015 0.32 AML other m 2017-01-21T11:00:14.32
IV.MCIV.HHN. ML:3.0 0.0006035000000000001 1.06 AML other m 2017-01-21T11:00:17.78
IV.MDAR.HNN. ML:3.6 0.005545 0.98 AML other m 2017-01-21T10:59:56.36
IV.MDAR.HNE. ML:3.8 0.008015000000000001 1.32 AML other m 2017-01-21T10:59:55.91
IV.MELA.HHN. ML:3.4 0.0010500000000000002 0.6 AML other m 2017-01-21T11:00:30.34
IV.MELA.HNE. ML:3.4 0.0010834999999999998 0.7 AML other m 2017-01-21T11:00:26.95
IV.MELA.HHE. ML:3.4 0.0009299999999999999 0.7 AML other m 2017-01-21T11:00:26.95
IV.MELA.HNN. ML:3.4 0.0010635 0.6 AML other m 2017-01-21T11:00:30.34
IV.MGAB.HNN. ML:3.6 0.00385 0.42 AML other m 2017-01-21T11:00:04.31
IV.MGAB.HHE. ML:3.7 0.0039900000000000005 0.62 AML other m 2017-01-21T11:00:05.53
IV.MGAB.HNE. ML:3.6 0.00354 0.6 AML other m 2017-01-21T11:00:05.53
IV.MGAB.HHN. ML:3.7 0.00408 0.4 AML other m 2017-01-21T11:00:04.31
IV.MOMA.HNN. ML:3.6 0.00635 0.5 AML other m 2017-01-21T10:59:51.35
IV.MOMA.HNE. ML:3.6 0.006 0.34 AML other m 2017-01-21T10:59:56.51
IV.MOMA.HHE. ML:3.6 0.00608 0.32 AML other m 2017-01-21T10:59:56.51
IV.MOMA.HHN. ML:3.6 0.006449999999999999 0.5 AML other m 2017-01-21T10:59:51.34
IV.MPAG.HNE. ML:3.5 0.00199 1.08 AML other m 2017-01-21T11:00:27.62
IV.MPAG.HNN. ML:3.6 0.002285 1.06 AML other m 2017-01-21T11:00:28.63
IV.MPAG.EHE. ML:3.4 0.0016699999999999998 0.32 AML other m 2017-01-21T11:00:14.29
IV.MPAG.EHN. ML:3.4 0.001575 0.3 AML other m 2017-01-21T11:00:15.79
OX.MPRI.HHN. ML:3.7 0.000246 1.2 AML other m 2017-01-21T11:01:17.65
OX.MPRI.HHE. ML:3.5 0.0001705 1.18 AML other m 2017-01-21T11:01:18.25
IV.MSAG.HHE. ML:3.6 0.000812 0.68 AML other m 2017-01-21T11:00:43.48
IV.MSAG.HNE. ML:3.5 0.000782 0.68 AML other m 2017-01-21T11:00:43.48
IV.MSAG.HNN. ML:3.7 0.001129 0.44 AML other m 2017-01-21T11:00:51.69
IV.MSAG.HHN. ML:3.7 0.001131 0.44 AML other m 2017-01-21T11:00:51.69
IV.MTCE.HHE. ML:3.0 0.0016899999999999999 0.44 AML other m 2017-01-21T10:59:54.89
IV.MTCE.HHN. ML:3.0 0.00171 1.02 AML other m 2017-01-21T10:59:54.94
IV.MURB.HHE. ML:4.0 0.00878 1.68 AML other m 2017-01-21T11:00:06.12
IV.MURB.HHN. ML:3.9 0.007135 0.34 AML other m 2017-01-21T11:00:05.27
IV.MURB.HNN. ML:3.9 0.0076300000000000005 1.7 AML other m 2017-01-21T11:00:05.97
IV.MURB.HNE. ML:3.9 0.007595000000000001 1.68 AML other m 2017-01-21T11:00:06.12
IV.NARO.HHE. ML:3.3 0.001244 1.5 AML other m 2017-01-21T11:00:18.87
IV.NARO.HHN. ML:3.2 0.0010245 0.56 AML other m 2017-01-21T11:00:16.47
IV.NOCI.HHN. ML:3.3 0.00013550000000000001 1.56 AML other m 2017-01-21T11:01:16.14
IV.NOCI.HHE. ML:3.0 0.0000864 0.38 AML other m 2017-01-21T11:01:26.47
IV.NRCA.HNE. ML:4.4 0.07095 1.84 AML other m 2017-01-21T10:59:43.00
IV.NRCA.HNN. ML:4.2 0.0465 0.16 AML other m 2017-01-21T10:59:43.51
IV.OFFI.HHE. ML:3.8 0.011349999999999999 0.76 AML other m 2017-01-21T10:59:56.77
IV.OFFI.HHN. ML:4.0 0.0193 1.04 AML other m 2017-01-21T10:59:52.03
IV.PARC.HHE. ML:3.4 0.0010925 1.3 AML other m 2017-01-21T11:00:30.31
IV.PARC.HHN. ML:3.2 0.0008325 1.16 AML other m 2017-01-21T11:00:24.04
MN.PDG.HHE. ML:3.4 0.0000804 0.26 AML other m 2017-01-21T11:00:37.69
MN.PDG.HHN. ML:3.5 0.0000929 0.38 AML other m 2017-01-21T11:01:30.38
IV.PESA.HHN. ML:3.8 0.002915 0.34 AML other m 2017-01-21T11:00:23.14
IV.PESA.HHE. ML:3.8 0.00273 0.26 AML other m 2017-01-21T11:00:27.23
IV.PIEI.HHN. ML:3.2 0.0009045 0.88 AML other m 2017-01-21T11:00:14.49
IV.PIEI.HHE. ML:3.4 0.0014049999999999998 0.72 AML other m 2017-01-21T11:00:15.49
IV.POFI.HNN. ML:2.9 0.00099 0.42 AML other m 2017-01-21T11:00:02.86
IV.POFI.HHN. ML:2.9 0.0009415 0.58 AML other m 2017-01-21T11:00:05.60
IV.POFI.HHE. ML:3.2 0.0017 1.3 AML other m 2017-01-21T11:00:03.94
IV.POFI.HNE. ML:3.1 0.0016349999999999997 1.3 AML other m 2017-01-21T11:00:03.95
IV.PP3.HNN. ML:4.0 0.008425 0.68 AML other m 2017-01-21T11:00:04.04
IV.PP3.EHN. ML:4.0 0.00844 0.7 AML other m 2017-01-21T11:00:04.04
IV.PP3.EHE. ML:4.2 0.01625 0.44 AML other m 2017-01-21T11:00:03.42
IV.PP3.HNE. ML:4.2 0.015700000000000002 0.44 AML other m 2017-01-21T11:00:03.41
IV.PTQR.HHE. ML:2.8 0.001765 0.36 AML other m 2017-01-21T10:59:45.67
IV.PTQR.HHN. ML:2.7 0.0012215 0.58 AML other m 2017-01-21T10:59:48.66
IV.RCAV.EHN. ML:3.4 0.00415 0.46 AML other m 2017-01-21T10:59:55.45
IV.RCAV.EHE. ML:3.4 0.00379 0.6 AML other m 2017-01-21T10:59:55.42
IV.RM33.EHE. ML:4.0 0.10595 0.62 AML other m 2017-01-21T10:59:34.08
IV.RM33.HNE. ML:4.0 0.10479999999999999 0.62 AML other m 2017-01-21T10:59:34.08
IV.RM33.HNN. ML:3.9 0.08009999999999999 1.74 AML other m 2017-01-21T10:59:33.95
IV.RM33.EHN. ML:3.9 0.07590000000000001 1.74 AML other m 2017-01-21T10:59:33.95
IV.RNI2.HHE. ML:3.4 0.00193 0.42 AML other m 2017-01-21T11:00:12.87
IV.RNI2.HNN. ML:3.3 0.00183 1.12 AML other m 2017-01-21T11:00:12.30
IV.RNI2.HHN. ML:3.3 0.001835 1.12 AML other m 2017-01-21T11:00:12.86
IV.RNI2.HNE. ML:3.4 0.0019399999999999999 0.42 AML other m 2017-01-21T11:00:12.87
IV.ROVR.HHN. ML:3.1 0.0000713 0.26 AML other m 2017-01-21T11:01:08.90
IV.ROVR.HHE. ML:2.8 0.000036 0.4 AML other m 2017-01-21T11:01:08.76
IV.RUFI.EHN. ML:3.0 0.00030199999999999997 0.8 AML other m 2017-01-21T11:00:36.84
IV.RUFI.EHE. ML:3.1 0.000321 0.92 AML other m 2017-01-21T11:00:37.40
OX.SABO.HNN. ML:4.2 0.0009170000000000001 0.8 AML other m 2017-01-21T11:01:29.59
OX.SABO.HHN. ML:3.6 0.0002415 0.78 AML other m 2017-01-21T11:01:29.58
OX.SABO.HHE. ML:3.5 0.00021050000000000002 0.52 AML other m 2017-01-21T11:01:34.34
OX.SABO.HNE. ML:4.1 0.000854 1.28 AML other m 2017-01-21T11:01:37.78
IV.SACS.HNN. ML:3.3 0.001625 1.2 AML other m 2017-01-21T11:00:10.21
IV.SACS.HNE. ML:3.2 0.0011864999999999998 0.74 AML other m 2017-01-21T11:00:10.58
IV.SACS.HHE. ML:3.2 0.001236 0.76 AML other m 2017-01-21T11:00:10.58
IV.SACS.HHN. ML:3.3 0.00158 1.18 AML other m 2017-01-21T11:00:10.22
IV.SEF1.HNN. ML:3.8 0.009269999999999999 0.24 AML other m 2017-01-21T10:59:55.52
IV.SEF1.HNE. ML:3.9 0.010320000000000001 0.98 AML other m 2017-01-21T10:59:58.49
IV.SENI.HNN. ML:4.4 0.01325 0.32 AML other m 2017-01-21T11:00:15.18
IV.SENI.HNE. ML:4.3 0.011210000000000001 0.5 AML other m 2017-01-21T11:00:19.98
IV.SENI.EHN. ML:3.5 0.0019399999999999999 0.42 AML other m 2017-01-21T11:00:14.52
TV.SF01.EHE. ML:3.3 0.0010445 0.78 AML other m 2017-01-21T11:00:19.58
TV.SF01.EHN. ML:3.2 0.000984 0.92 AML other m 2017-01-21T11:00:18.13
IV.SNTG.HHE. ML:3.4 0.00273 1.38 AML other m 2017-01-21T10:59:58.24
IV.SNTG.HHN. ML:3.4 0.0028599999999999997 0.2 AML other m 2017-01-21T10:59:59.56
IV.SNTG.HNN. ML:3.4 0.002875 0.22 AML other m 2017-01-21T10:59:59.57
IV.SNTG.HNE. ML:3.4 0.002695 1.4 AML other m 2017-01-21T10:59:58.24
IV.SRES.HHE. ML:3.0 0.0015049999999999998 1.2 AML other m 2017-01-21T10:59:56.08
IV.SRES.HHN. ML:3.2 0.0024249999999999996 0.44 AML other m 2017-01-21T10:59:58.04
IV.SSFR.HNN. ML:3.9 0.006275 0.24 AML other m 2017-01-21T11:00:11.42
IV.SSFR.HHN. ML:3.9 0.006485 0.24 AML other m 2017-01-21T11:00:11.42
IV.SSFR.HHE. ML:4.0 0.008094999999999998 0.24 AML other m 2017-01-21T11:00:06.46
IV.SSFR.HNE. ML:4.1 0.009100000000000002 0.22 AML other m 2017-01-21T11:00:06.47
IV.STAL.HNE. ML:3.7 0.00023750000000000003 0.52 AML other m 2017-01-21T11:01:16.42
IV.STAL.HNN. ML:3.8 0.000291 0.74 AML other m 2017-01-21T11:01:22.49
IV.STAL.HHE. ML:3.8 0.0002755 0.24 AML other m 2017-01-21T11:01:17.90
IV.STAL.HHN. ML:3.7 0.000235 0.24 AML other m 2017-01-21T11:01:14.64
IV.T1202.EHE. ML:4.5 0.1615 0.18 AML other m 2017-01-21T10:59:39.30
IV.T1202.EHN. ML:4.5 0.15 0.18 AML other m 2017-01-21T10:59:39.66
IV.T1211.HNE. ML:3.6 0.01475 0.32 AML other m 2017-01-21T10:59:42.14
IV.T1211.EHE. ML:3.6 0.01465 0.32 AML other m 2017-01-21T10:59:42.14
IV.T1211.HNN. ML:3.8 0.021549999999999996 0.4 AML other m 2017-01-21T10:59:44.86
IV.T1211.EHN. ML:3.8 0.0216 0.4 AML other m 2017-01-21T10:59:44.86
IV.T1212.HNE. ML:3.7 0.017799999999999996 0.26 AML other m 2017-01-21T10:59:44.37
IV.T1212.EHE. ML:3.7 0.0172 0.28 AML other m 2017-01-21T10:59:44.37
IV.T1212.HNN. ML:3.9 0.028399999999999998 0.22 AML other m 2017-01-21T10:59:41.22
IV.T1212.EHN. ML:3.9 0.02845 0.2 AML other m 2017-01-21T10:59:41.22
IV.T1215.EHE. ML:3.2 0.003925 0.86 AML other m 2017-01-21T10:59:45.49
IV.T1215.HNE. ML:3.2 0.0037949999999999998 0.86 AML other m 2017-01-21T10:59:45.49
IV.T1215.HNN. ML:3.2 0.0037800000000000004 1.36 AML other m 2017-01-21T10:59:46.86
IV.T1215.EHN. ML:3.2 0.00382 1.36 AML other m 2017-01-21T10:59:46.87
IV.T1216.EHE. ML:3.9 0.017549999999999996 0.82 AML other m 2017-01-21T10:59:46.45
IV.T1216.EHN. ML:4.0 0.02525 0.68 AML other m 2017-01-21T10:59:46.37
IV.T1217.EHE. ML:3.6 0.014850000000000002 0.2 AML other m 2017-01-21T10:59:43.46
IV.T1217.EHN. ML:3.7 0.0156 0.56 AML other m 2017-01-21T10:59:42.60
IV.T1217.HNE. ML:3.6 0.01425 0.18 AML other m 2017-01-21T10:59:43.45
IV.T1217.HNN. ML:3.7 0.015099999999999999 0.64 AML other m 2017-01-21T10:59:42.60
IV.T1218.EHE. ML:4.2 0.0727 0.16 AML other m 2017-01-21T10:59:38.20
IV.T1218.HNE. ML:4.2 0.07354999999999999 0.16 AML other m 2017-01-21T10:59:38.20
IV.T1218.HNN. ML:4.3 0.08954999999999999 0.22 AML other m 2017-01-21T10:59:38.29
IV.T1218.EHN. ML:4.3 0.08765 0.22 AML other m 2017-01-21T10:59:38.29
IV.T1220.EHN. ML:4.4 0.03975 1.66 AML other m 2017-01-21T10:59:54.11
IV.T1220.HNE. ML:4.3 0.032850000000000004 1.2 AML other m 2017-01-21T10:59:55.25
IV.T1220.EHE. ML:4.3 0.03245 1.2 AML other m 2017-01-21T10:59:55.25
IV.T1220.HNN. ML:4.4 0.040049999999999995 1.64 AML other m 2017-01-21T10:59:54.11
IV.T1222.EHN. ML:3.2 0.00872 0.4 AML other m 2017-01-21T10:59:37.26
IV.T1222.EHE. ML:3.2 0.01095 0.28 AML other m 2017-01-21T10:59:39.33
IV.T1222.HNE. ML:3.3 0.011300000000000001 0.28 AML other m 2017-01-21T10:59:39.33
IV.T1222.HNN. ML:3.2 0.009155000000000002 0.42 AML other m 2017-01-21T10:59:37.45
IV.T1247.HHN. ML:4.0 0.1185 0.54 AML other m 2017-01-21T10:59:33.97
IV.T1247.HHE. ML:3.9 0.095 0.5 AML other m 2017-01-21T10:59:36.38
IV.T1299.EHE. ML:3.5 0.01905 0.42 AML other m 2017-01-21T10:59:36.67
IV.T1299.HNE. ML:3.5 0.019149999999999997 0.42 AML other m 2017-01-21T10:59:36.67
IV.T1299.HNN. ML:3.6 0.026049999999999997 0.9 AML other m 2017-01-21T10:59:36.43
IV.T1299.EHN. ML:3.6 0.027149999999999997 0.9 AML other m 2017-01-21T10:59:36.43
IV.TOLF.HHN. ML:3.0 0.0009135 0.56 AML other m 2017-01-21T10:59:51.16
IV.TOLF.HHE. ML:3.1 0.001137 0.48 AML other m 2017-01-21T11:00:08.76
IV.TRTR.HHE. ML:3.7 0.0103 1.2 AML other m 2017-01-21T11:00:00.84
IV.TRTR.HHN. ML:3.7 0.008635 0.98 AML other m 2017-01-21T10:59:59.81
IV.VAGA.HHE. ML:2.9 0.000465 0.96 AML other m 2017-01-21T11:00:26.60
IV.VAGA.HNE. ML:2.9 0.00045949999999999995 0.98 AML other m 2017-01-21T11:00:26.61
IV.VAGA.HHN. ML:3.1 0.000772 0.62 AML other m 2017-01-21T11:00:25.03
IV.VAGA.HNN. ML:3.1 0.0007664999999999999 0.62 AML other m 2017-01-21T11:00:25.03
IV.VVLD.HHN. ML:3.1 0.002175 0.74 AML other m 2017-01-21T10:59:59.46
IV.VVLD.HHE. ML:3.0 0.00177 1.22 AML other m 2017-01-21T10:59:59.72
TDMT - Time Domain Moment Tensor
Fault Plane solutions in the area
Fault Plane solutions

Fault Plane solutions

The map reports the fault plane solutions for earthquakes in the region from 1977 to the date of this event. Red moment tensors are determined using the Regional Centroid Moment Tensor technique (RCMT, http://www.bo.ingv.it/RCMT) applied for earthquakes with magnitude larger than 4.5 in the Euro-Mediterranenan area. Occasionally, when a station azimuthal coverage exists RCMTs can be obtained also for earthquakes with magnitude down to 4.0. The gray moment tensors are obtained with the Time Domain Moment Tensor method (TDMT, /tdmt). This technique is applied to earthquakes with magnitude ML greater than 3.2, when it is possible. The size of symbols scales with the calculated moment magnitude Mw.
Download
Type Description Link
QuakeML - small Event, Origin, FocalMechanism Download
QuakeML - full Event, Origin, FocalMechanism, Amplitude, Arrival, Pick, Station Magnitude Download
Waveforms Seismic signals in miniseed + resp format Download
